Planar® UltraRes™ P Series large format LCD displays are ideal for applications ranging from dynamic digital signage to collaborative meeting rooms, with 4K resolution and 24x7 commercial-grade construction. Display up to four sources simultaneously in a quad layout and receive email alerts for remote monitoring when unexpected events occur. Touch models are available with Planar® ERO-LCD™ (Extended Ruggedness and Optics™) protective glass and multi-point interaction.



Request a quote

  • 49", 55", 65", 75", 85" sizes
  • 4K resolution (3840 x 2160)

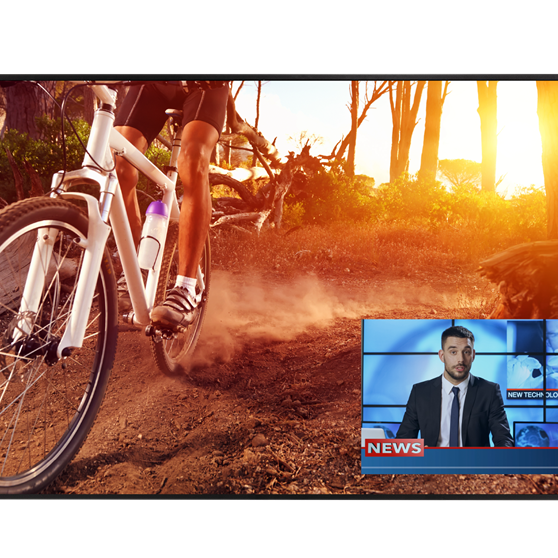

  • Multi-source viewing
  • Touch screen models available

Product Highlights

ALWAYS-ON RELIABILITY

Displays are designed for mission-critical environments where they must withstand extended or continuous operation and provide exceptional performance day and night.

KEEP INFORMED

Browser-based remote monitoring software displays information about the display and allows users to make adjustments to zones, brightness, power settings, and more. Set up email alerts to be notified of specific performance events and always stay informed.

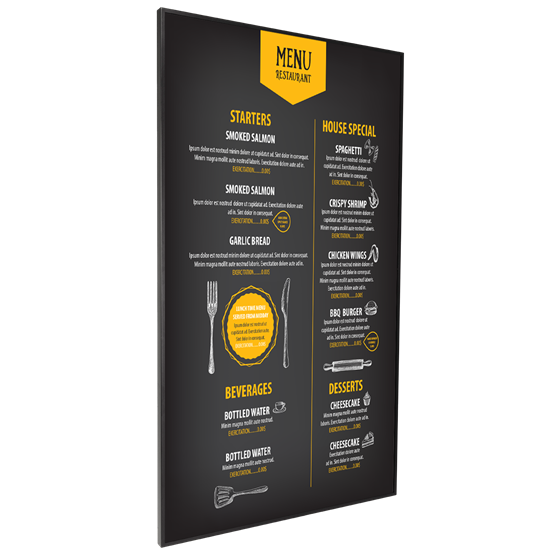

LANDSCAPE OR PORTRAIT

The displays can be mounted in either portrait or landscape orientation, allowing for a wider range of deployment environments and applications and increasing creativity in content development.

CONVENIENT CONTROL

Conveniently manage multi-source viewing remotely when connected to the same network using the Planar® UltraRes™ App. Available for iOS® or Android™ devices.

Add-Ons & Accessories

EXTENDED RUGGEDNESS & OPTICS

Planar® ERO-LCD™ (Extended Ruggedness and Optics™) protective glass is bonded to the front of the display using a proprietary process, creating a highly durable display surface that withstands the rigors of high-traffic and interactive environments. It also provides up to 300% higher perceived contrast.

ENABLE INTERACTIVITY

Optimize displays for interactivity with a multi-point touch system. Our touchscreen LCD displays are ideal for work, presentation and learning environments that require whiteboarding, annotation and better overall engagement.

Specifications Standard Models

Product Name URP49 URP55 URP65 URP75 URP85
Planar Part Number 998-2887-00 998-2889-00 998-2891-00 998-2653-00 998-2655-00
Display Resolution Ultra HD (3840 x 2160) Ultra HD (3840 x 2160) Ultra HD (3840 x 2160) Ultra HD (3840 x 2160) Ultra HD (3840 x 2160)
Screen Diagonal 49" (ca. 124cm) 55" (ca. 139cm) 65" (ca. 165cm) 75“ (ca. 190cm) 85“ (ca. 215 cm)
Aspect Ratio 16:9 16:9 16:9 16:9 16:9
Display Technology Edge-lit LED LCD Edge-lit LED LCD Edge-lit LED LCD Direct-lit LED LCD Direct-lit LED LCD
Haze 28% 28% 28% 25% 1%
Surface Treatment AG AG AG AG AG
Display Active Area 1073.8mm x 604.0mm (42.3" x 23.8") 1209.6mm x 680.4mm(47.6" x 26.8") 1428.5mm x 803.7mm (56.2" x 31.6") 1649.7mm x 927.9mm (64.9” x 36.5”) 1872mm x 1053mm (73.7” x 41.5”)
Viewing Angle (typ) 178° 178° 178° 178° 178°
Backlight LED LED LED LED LED
Backlight life (1/2 brightness) 30,000 hrs (min) 30,000 hrs (min) 30,000 hrs (min) 50,000 hrs (typ) 50,000 hrs (typ)
Brightness (typ) 500 nits 500 nits 500 nits 500 nits 500 nits
Response Time (typ) 8 ms 8 ms 8 ms 8 ms 9.5 ms
Frame Rate 60Hz 60Hz 60Hz 60Hz 60Hz
Contrast Ratio (typ) 1100:1 1100:1 1100:1 1200:1 5000:1
Pixel Pitch 0.2796 mm 0.315 mm 0.372 mm 0.4296 mm 0.4875 mm
Color Gamut 72% NTSC 72% NTSC 72% NTSC 72% NTSC 72% NTSC
Display Color >1 billion colors. Full 10 bit data path >1 billion colors. Full 10 bit data path >1 billion colors. Full 10 bit data path >1 billion colors. Full 10 bit data path >1 billion colors. Full 10 bit data path
External Connections DisplayPort 1.2 x 2, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2, VGA x 1 DisplayPort 1.2 x 2, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2, VGA x 1 DisplayPort 1.2 x 2, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2, VGA x 1 DisplayPort 1.2 in x 1, DisplayPort out, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2 DisplayPort 1.2 in x 1, DisplayPort out, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2
Modes 3840x2160 @ 24/25/30/50/60Hz; 1080p @ 24/25/30/50/60Hz; 1080i @ 50/60 Hz; 480p, 576p, 720p @ 50/60 Hz 3840x2160 @ 24/25/30/50/60Hz; 1080p @ 24/25/30/50/60Hz; 1080i @ 50/60 Hz; 480p, 576p, 720p @ 50/60 Hz 3840x2160 @ 24/25/30/50/60Hz; 1080p @ 24/25/30/50/60Hz; 1080i @ 50/60 Hz; 480p, 576p, 720p @ 50/60 Hz 1x 3840x2160 @ 24/25/30/60Hz, 4x 1920x1080 @ 24/25/30/50/60Hz; 2x 1920x2160 @ 60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 24/25/30/50/60Hz; 1080i @ 50/60 Hz 1x 3840x2160 @ 24/25/30/60Hz, 4x 1920x1080 @ 24/25/30/50/60Hz; 2x 1920x2160 @ 60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 24/25/30/50/60Hz; 1080i @ 50/60 Hz
Display Control IR, RS-232, LAN, HDMI-CEC, Keypad IR, RS-232, LAN, HDMI-CEC, Keypad IR, RS-232, LAN, HDMI-CEC, Keypad IR, RS-232, LAN, HDMI-CEC, Keypad, Mobile App IR, RS-232, LAN, HDMI-CEC, Keypad
Cabinet Dimensions (W x H x D) 1099.4mm x 632.2mm x 65.8mm (43.3" x 24.9" x 2.6") 1235.6mm x 709.0mm x 65.8mm (48.6" x 27.9" x 2.6") 1454.4mm x 832.2mm x 67.3mm (57.3" x 32.8" x 2.6") 1684.0mm x 962.0 x 91.2mm (66.3" x 37.9" x 3.6") 1902.0mm x 1083.0mm x 89.4mm (74.9" x 42.6" x 3.5")
Cabinet Dimensions with Handles (W x H x D) 1099.4mm x 632.2mm x 74.8mm (43.3" x 24.9" x 2.9") 1235.6mm x 709.0mm x 74.8mm (48.6" x 27.9" x 2.9") 1454.4mm x 832.2mm x 74.8mm (57.3" x 32.8" x 2.9") 1684.0mm x 962.0 x 91.2mm (66.3" x 37.9" x 3.6") 1902.0mm x 1083.0mm x 92.6mm (74.9" x 42.6" x 3.7")
Orientation Landscape/Portrait Landscape/Portrait Landscape/Portrait Landscape/Portrait Landscape/Portrait
Bezel Width 10.5mm (0.4") left and right, 10.0mm (0.4") top, 13.6mm (0.5") bottom 10.5mm (0.4") left and right, 10.0mm (0.4") top, 13.6mm (0.5") bottom 10.5mm (0.4") left and right, 10.0mm (0.4") top, 13.6mm (0.5") bottom 14.9mm (0.6") 13mm (0.5")
Display Edge to Active Area 10.5mm (0.4") left and right, 10.0mm (0.4") top, 13.6mm (0.5") bottom 10.5mm (0.4") left and right, 10.0mm (0.4") top, 13.6mm (0.5") bottom 10.5mm (0.4") left and right, 10.0mm (0.4") top, 13.6mm (0.5") bottom 16.9mm (0.7") 15mm (0.6")
Weight 20.9 kg (46.1 lbs) 25.6 kg (56.4 lbs) 38.0 kg (83.8 lbs) 42 kg (92 lbs) 58 kg (127 lbs)
Audio Input PC Line In PC Line In PC Line In PC Line In PC Line In
Audio Output PC Line Out, S/PDIF PC Line Out, S/PDIF PC Line Out, S/PDIF PC Line Out, S/PDIF PC Line Out, S/PDIF
Speakers 10W x 2 built-in 10W x 2 built-in 10W x 2 built-in 10W x 2 built-in 10W x 2 built-in
Enclosure Metal, Industrial Metal, Industrial Metal, Industrial Metal Metal
Mounting VESA: 300mm x 300mm VESA: 300mm x 300mm VESA: 400mm x 400mm VESA: 600 x 400mm VESA: 600 x 400mm. External device mounting: 100 x 100mm
Fanless Yes Yes Yes Yes Yes
Line Voltage 100-240V; 50/60Hz 100-240V; 50/60Hz 100-240V; 50/60Hz 100-240V; 50/60Hz 100-240V; 50/60Hz
Power Consumption (typ) 79W (standby: <0.5W) 85W (standby: <0.5W) 100W (standby: <0.5W) 195W (standby: <0.5W) 235W (standby: <0.5W)
AC Output Current (max) 3A 3A 3A 3A 3A
Operating Temperature 0° to +40°C (32° to 104°F) up to 3000m 0° to +40°C (32° to 104°F) up to 3000m 0° to +40°C (32° to 104°F) up to 3000m 0° to +40°C (32° to 104°F) at up to 3000m 0° to +40°C (32° to 104°F) at up to 3000m
Humidity 20 - 85% RH (non-condensing) 20 - 85% RH (non-condensing) 20 - 85% RH (non-condensing) 20 - 85% RH (non-condensing) 20 - 85% RH (non-condensing)
Options / Features On/Off scheduling, Presets On/Off scheduling, Presets On/Off scheduling, Presets MediaPlex Plus Processing, Scheduling, Presets MediaPlex Plus Processing, Scheduling, Presets
Auto Brightness Control Ambient light sensor Ambient light sensor Ambient light sensor N/A N/A

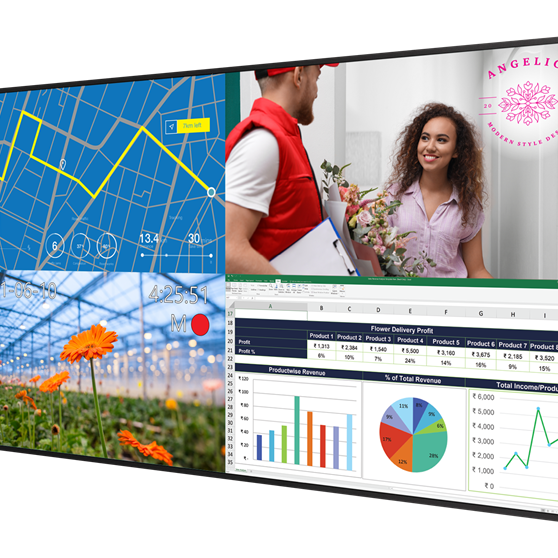

Multi-Source Views PiP, Dual, Quad PiP, Dual, Quad PiP, Dual, Quad PiP, Dual, Triple, Quad PiP, Dual, Triple, Quad
Approvals FCC Class A, CE, cTUVus, RoHS FCC Class A, CE, cTUVus, RoHS FCC Class A, CE, cTUVus, RoHS FCC Class A, cTUVus, RoHS FCC Class A, cTUVus, RoHS
TAA Compliance Yes Yes Yes Yes Yes
Security No WiFi, no Android O/S, signed and encrypted firmware, tamper-resistant stickers, ability to disable communication interfaces, Secure Shell (SSH) protocol No WiFi, no Android O/S, signed and encrypted firmware, tamper-resistant stickers, ability to disable communication interfaces, Secure Shell (SSH) protocol No WiFi, no Android O/S, signed and encrypted firmware, tamper-resistant stickers, ability to disable communication interfaces, Secure Shell (SSH) protocol No WiFi, no Android O/S, signed and encrypted firmware, tamper-resistant stickers No WiFi, no Android O/S, signed and encrypted firmware, tamper-resistant stickers
Warranty 3 years Advance Exchange 3 years Advance Exchange 3 years Advance Exchange 3 years Advance Exchange 3 years Advance Exchange
Recommended Usage Up to 24x7 Up to 24x7 Up to 24x7 Up to 24x7 operation Up to 24x7 operation
In the Box URP49 display, power cord, HDMI cable, IR cable, remote control, and Quick Start Guide URP55 display, power cord, HDMI cable, IR cable, remote control, and Quick Start Guide URP65 display, power cord, HDMI cable, IR cable, remote control, and Quick Start Guide URP75 display, US power cord - 1.8m, HDMI cable 2m, IR sensor, remote control, QuickStart Guide URP85 display, US power cord - 1.8m, HDMI cable 2m, IR sensor, remote control, QuickStart Guide
UPC 8 10689 00991 7 8 10689 00993 1 8 10689 00995 5 8 10689 00919 1 8 10689 00921 4

Specifications Touch Models

Product Name URP49-T URP55-T URP65-T URP75-ERO-T URP85-ERO-T
Planar Part Number 998-2888-00 998-2890-00 998-2892-00 998-2654-00 998-2656-00
Protective Glass 3mm with AG+AF coating 3mm with AG+AF coating 3mm with AG+AF coating ERO optically-bonded glass technology featuring Corning Gorilla Glass, 2mm AG ERO optically-bonded glass technology featuring Corning Gorilla Glass, 2mm AG
Touch Technology Projected Capacitive Projected Capacitive Projected Capacitive IR touch: 20 points IR touch: 20 points
OS Compatibility Windows 7, 8, 10, 11, Mac OSX and Linux Windows 7, 8, 10, 11, Mac OSX and Linux Windows 7, 8, 10, 11, Mac OSX and Linux Windows 7, 8, 10, 11, Mac OSX and Linux Windows 7, 8, 10, 11, Mac OSX and Linux
Display Resolution Ultra HD (3840 x 2160) Ultra HD (3840 x 2160) Ultra HD (3840 x 2160) Ultra HD (3840 x 2160) Ultra HD (3840 x 2160)
Screen Diagonal 49" (ca. 124cm) 55" (ca. 139cm) 65" (ca. 165cm) 75“ (ca. 190cm) 85“ (ca. 215 cm)
Aspect Ratio 16:9 16:9 16:9 16:9 16:9
Display Technology Edge-lit LED LCD Edge-lit LED LCD Edge-lit LED LCD Direct-lit LED LCD Direct-lit LED LCD
Display Active Area 1073.8mm x 604.0mm (42.3" x 23.8") 1209.6mm x 680.4mm (47.6" x 26.8") 1428.5mm x 803.7mm(56.2" x 31.6") 1649.7mm x 927.9mm (64.9” x 36.5”) 1872mm x 1053mm (73.7” x 41.5”)
Viewing Angle (typ) 178° 178° 178° 178° 178°
Backlight LED LED LED LED LED
Backlight life (1/2 brightness) 30,000 hrs (min) 30,000 hrs (min) 30,000 hrs (min) 50,000 hrs (typ) 50,000 hrs (typ)
Brightness (w/protective glass) 450 nits 450 nits 450 nits 450 nits 450 nits
Response Time (typ) 8 ms 8 ms 8 ms 8 ms 9.5 ms
Frame Rate 60Hz 60Hz 60Hz 60Hz 60Hz
Contrast Ratio (typ) 1100:1 1100:1 1100:1 1200:1 5000:1
Pixel Pitch 0.2796 mm 0.315 mm 0.372 mm 0.4296 mm 0.4875 mm
Color Gamut 72% NTSC 72% NTSC 72% NTSC 72% NTSC 72% NTSC
Display Color >1 billion colors. Full 10 bit data path >1 billion colors. Full 10 bit data path >1 billion colors. Full 10 bit data path >1 billion colors. Full 10 bit data path >1 billion colors. Full 10 bit data path
External Connections DisplayPort 1.2 x 2, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2, VGA x 1 DisplayPort 1.2 x 2, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2, VGA x 1 DisplayPort 1.2 x 2, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2, VGA x 1 DisplayPort 1.2 in x 1, DisplayPort out, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2, USB-B (for touch controller) DisplayPort 1.2 in x 1, DisplayPort out, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2, USB-B (for touch controller)
Modes 3840x2160 @ 24/25/30/50/60Hz; 1080p @ 24/25/30/50/60Hz; 1080i @ 50/60 Hz;
480p, 576p, 720p @ 50/60 Hz
3840x2160 @ 24/25/30/50/60Hz; 1080p @ 24/25/30/50/60Hz; 1080i @ 50/60 Hz;
480p, 576p, 720p @ 50/60 Hz
3840x2160 @ 24/25/30/50/60Hz; 1080p @ 24/25/30/50/60Hz; 1080i @ 50/60 Hz;
480p, 576p, 720p @ 50/60 Hz
1x 3840x2160 @ 24/25/30/60Hz, 4x 1920x1080 @ 24/25/30/50/60Hz; 2x
1920x2160 @ 60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 24/25/30/50/60Hz;
1080i @ 50/60 Hz
1x 3840x2160 @ 24/25/30/60Hz, 4x 1920x1080 @ 24/25/30/50/60Hz; 2x
1920x2160 @ 60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 24/25/30/50/60Hz;
1080i @ 50/60 Hz
Display Control IR, RS-232, LAN, HDMI-CEC, Keypad IR, RS-232, LAN, HDMI-CEC, Keypad IR, RS-232, LAN, HDMI-CEC, Keypad IR, RS-232, LAN, HDMI-CEC, Keypad, Mobile App IR, RS-232, LAN, HDMI-CEC, Keypad
Cabinet Dimensions (W x H x D) 1127.2mm x 657.4mm x 69.8mm (44.4" x 25.9" x 2.7") 1263.8mm x 734.2mm x 68.8mm (49.8" x 28.9" x 2.7") 1482.7mm x 857.5mm x 71.3mm (58.4" x 33.8" x 2.8") 1717.0mm x 995.0mm x 103.7mm (67.6" x 39.2" x 4.1") 1936.0mm x 1117.0mm x 104.5mm (76.2" x 44.0" x 4.1")
Cabinet Dimensions with Handles (W x H x D) 1127.2mm x 657.4mm x 78.8mm (44.4" x 25.9" x 3.1") 1263.8mm x 734.2mm x 77.8mm (49.8" x 28.9" x 3.1") 1482.7mm x 857.5mm x 78.8mm (58.4" x 33.8" x 3.1") 1717.0mm x 995.0mm x 103.7mm (67.6" x 39.2" x 4.1") 1936.0mm x 1117.0mm x 104.5mm (76.2" x 44.0" x 4.1")
Orientation Landscape/Portrait Landscape/Portrait Landscape/Portrait Landscape/Portrait Landscape/Portrait
Bezel Width 1.5mm (0.1") 1.5mm (0.1") 1.5mm (0.1") 15.1mm (0.6") 15.1mm (0.6")
Display Edge to Active Area 26.7mm (1.1") 27.0mm (1.1") left and right, 27.1mm (1.1") top and bottom 27.0mm (1.1") left and right, 27.1mm (1.1") top and bottom 33.7mm (1.3") 31.8mm (1.3")
Weight 28.6 kg (63.1 lbs) 34.7 kg (76.5 lbs) 50.0 kg (110.2 lbs) 63 kg (138 lbs) 82 kg (181 lbs)
Audio Input PC Line In PC Line In PC Line In PC Line In PC Line In
Audio Output PC Line Out, S/PDIF PC Line Out, S/PDIF PC Line Out, S/PDIF PC Line Out, S/PDIF PC Line Out, S/PDIF
Speakers 10W x 2 built-in 10W x 2 built-in 10W x 2 built-in 10W x 2 built-in 10W x 2 built-in
Enclosure Metal, Industrial Metal, Industrial Metal, Industrial Metal Metal
Mounting VESA: 300mm x 300mm VESA: 300mm x 300mm VESA: 400mm x 400mm VESA: 600 x 400mm VESA: 600 x 400mm. External device mounting: 100 x 100mm
Fanless Yes Yes Yes Yes Yes
Line Voltage 100-240V; 50/60Hz 100-240V; 50/60Hz 100-240V; 50/60Hz 100-240V; 50/60Hz 100-240V; 50/60Hz
Power Consumption (typ) 79W (standby: <0.5W) 85W (standby: <0.5W) 100W (standby: <0.5W) 195W (standby: <0.5W) 235W (standby: <0.5W)
AC Output Current (max) 3A 3A 3A 3A 3A
Operating Temperature 0° to +40°C (32° to 104°F) up to 3000m 0° to +40°C (32° to 104°F) up to 3000m 0° to +40°C (32° to 104°F) up to 3000m 0° to +40°C (32° to 104°F) at up to 3000m 0° to +40°C (32° to 104°F) at up to 3000m
Humidity 20 - 85% RH (non-condensing) 20 - 85% RH (non-condensing) 20 - 85% RH (non-condensing) 20 - 85% RH (non-condensing) 20 - 85% RH (non-condensing)
Options / Features On/Off scheduling, Presets On/Off scheduling, Presets On/Off scheduling, Presets MediaPlex Plus Processing, Scheduling, Presets, TouchMark license key MediaPlex Plus Processing, Scheduling, Presets, TouchMark license key
Auto Brightness Control Ambient light sensor Ambient light sensor Ambient light sensor N/A N/A
Multi-Source Views PiP, Dual, Quad PiP, Dual, Quad PiP, Dual, Quad PiP, Dual, Triple, Quad PiP, Dual, Triple, Quad
Approvals FCC Class A, CE, cTUVus, RoHS FCC Class A, CE, cTUVus, RoHS FCC Class A, CE, cTUVus, RoHS FCC Class A, cTUVus, RoHS FCC Class A, cTUVus, RoHS
TAA Compliance Yes Yes Yes Yes Yes
Security No WiFi, no Android O/S, signed and encrypted firmware, tamper-resistant stickers, ability to disable communication interfaces, Secure Shell (SSH) protocol No WiFi, no Android O/S, signed and encrypted firmware, tamper-resistant stickers, ability to disable communication interfaces, Secure Shell (SSH) protocol No WiFi, no Android O/S, signed and encrypted firmware, tamper-resistant stickers, ability to disable communication interfaces, Secure Shell (SSH) protocol No WiFi, no Android O/S, signed and encrypted firmware, tamper-resistant stickers No WiFi, no Android O/S, signed and encrypted firmware, tamper-resistant stickers
Warranty 3 years Advance Exchange 3 years Advance Exchange 3 years Advance Exchange 3 years Advance Exchange 3 years Advance Exchange
Recommended Usage Up to 24x7 Up to 24x7 Up to 24x7 Up to 24x7 operation Up to 24x7 operation
In the Box URP49-T display, power cord, HDMI cable, IR cable, USB A to B cable, remote control, TouchMark license key (one time download), and Quick Start Guide URP55-T display, power cord, HDMI cable, IR cable, USB A to B cable, remote control, TouchMark license key (one time download), and Quick Start Guide URP65-T display, power cord, HDMI cable, IR cable, USB A to B cable, remote control, TouchMark license key (one time download), and Quick Start Guide URP75-ERO-T display, US power cord - 1.8m, HDMI cable 2m, USB (A to B) cable, IR sensor, remote control, TouchMark license key (one time download), QuickStart Guide URP85-ERO-T display, US power cord - 1.8m, HDMI cable 2m, USB (A to B) cable, IR sensor, remote control, TouchMark license key (one time download), QuickStart Guide
UPC 8 10689 00992 4 8 10689 00994 8 8 10689 00996 2 8 10689 00920 7 8 10689 00922 1
