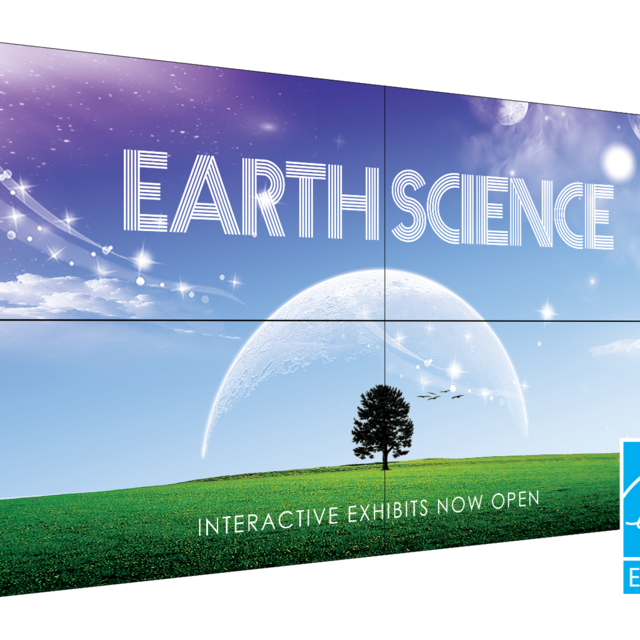

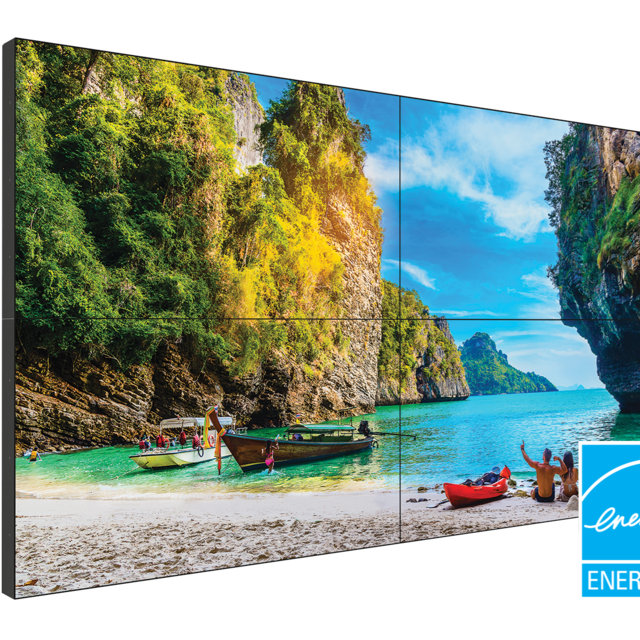

Série Planar VMLa série Planar® VM est une gamme d'écrans LCD qui offre une solution de mur d'images aux nombreuses fonctionnalités pour les applications exigeantes en 24/7 et à forte luminosité ambiante. Avec une variété de tailles, de largeurs et de niveaux de luminosité, la série Planar VM constitue une solution de mur d'images presque sans bordures d'une valeur incontestable pour répondre aux besoins d'une organisation.

La série Planar VM comprend des écrans 55” LCD Full HD avec des largeurs de cadre de 0,88, 2,6 ou 3,5 mm et une luminosité entre 500 et 700 nits. La série Planar VM à haut rendement énergétique offre une fiabilité élevée pour répondre aux besoins des applications de signalisation digitale, notamment dans le commerce, l'hôtellerie, les halls d'accueil d'entreprises, les casinos et les musées.

Leyard est fier de proposer la série d'écrans pour murs d'images Planar VM ayant remporté le label ENERGY STAR®.

  • Écran LCD pour mur d'images de 55" avec largeur de cadre modulaire de 0,8mm
  • Résolution Full HD
  • Modèles avec luminosité de 500 à 700 nits
  • Connectivité 4K 60 Hz avec boucle et mise à l'échelle du mur vidéo intégré jusqu'à une matrice 10x10
  • Affichage sans ventilateur
  • Conçu pour un fonctionnement 24/7
  • Certifié ENERGY STAR®

Modèles série Planar VM



Diagonale

Largeur du cadre

Résolution

Luminosité
VM55MX-M2 55" / 139cm 0.88mm 1920x1080 700 nits
VM55LX-M2 55" / 139cm 0.88mm 1920x1080 500 nits
VM55MX-X2 55" / 139cm 2.6mm 1920x1080 700 nits
VM55LX-X2 55" / 139cm 2.6mm 1920x1080 500 nits
VM55LX-U2 55" / 139cm 3.5mm 1920x1080 500 nits

Spécifications

Product Name VM55MX-M2 VM55LX-M2 VM55MX-X2 VM55LX-X2 VM55LX-U2
Planar Part Number 998-2595-00 998-2596-00 998-2597-00 998-2598-00 998-2599-00
Viewable Size 55" diagonal 55" diagonal 55" diagonal 55" diagonal 55" diagonal
Display Technology Commercial-grade IPS LCD Commercial-grade IPS LCD Commercial-grade IPS LCD Commercial-grade IPS LCD Commercial-grade IPS LCD
Backlight D-LED with Local Dimming D-LED with Local Dimming D-LED with Local Dimming D-LED with Local Dimming D-LED with Local Dimming
Brightness (Typical) 700 cd/m² 500 cd/m² 700 cd/m² 500 cd/m² 500 cd/m²
Bezel Width 0.44mm even 0.44mm even 1.7mm (left / top), 0.9mm (right / bottom) 1.7mm (left / top), 0.9mm (right / bottom) 2.25mm (left / top), 1.25mm (right / bottom)
Tiled Bezel Width 0.88mm 0.88mm 2.6mm 2.6mm 3.5mm
Display Resolution 1920 x 1080, full HD 1920 x 1080, full HD 1920 x 1080, full HD 1920 x 1080, full HD 1920 x 1080, full HD
Aspect Ratio 16:09 16:09 16:09 16:09 16:09
Contrast Ratio (typ) 1100:1 1100:1 1000:1 1000:1 1200:1
Contrast Ratio - Dynamic 140,000:1 100,000:1 140,000:1 100,000:1 20,000:1
Response Time (typ) 8 ms 8 ms 8 ms 8 ms 8 ms
Viewing Angle (typ) 178° 178° 178° 178° 178°
Palette 1.073B colors (10 bit) 1.073B colors (10 bit) 1.073B colors (10 bit) 1.073B colors (10 bit) 1.073B colors (10 bit)
Color Gamut 72% NTSC 72% NTSC 72% NTSC 72% NTSC 72% NTSC
Pixel Pitch 0.630mm x 0.630mm 0.630mm x 0.630mm 0.630mm x 0.630mm 0.630mm x 0.630mm 0.630mm x 0.630mm
Haze 28% 28% 28% 28% 28%
External Connections DisplayPort 1.2 in x 1, DisplayPort out, HDMI 2.0 in x 2 (HDCP 2.2), OPS x 1, OPS USB 2.0 x 2, OPS USB 3.0 X 1, VGA in x1 DisplayPort 1.2 in x 1, DisplayPort out, HDMI 2.0 in x 2 (HDCP 2.2), OPS x 1, OPS USB 2.0 x 2, OPS USB 3.0 X 1, VGA in x1 DisplayPort 1.2 in x 1, DisplayPort out, HDMI 2.0 in x 2 (HDCP 2.2), OPS x 1, OPS USB 2.0 x 2, OPS USB 3.0 X 1, VGA in x1 DisplayPort 1.2 in x 1, DisplayPort out, HDMI 2.0 in x 2 (HDCP 2.2), OPS x 1, OPS USB 2.0 x 2, OPS USB 3.0 X 1, VGA in x1 DisplayPort 1.2 in x 1, DisplayPort out, HDMI 2.0 in x 2 (HDCP 2.2), OPS x 1, OPS USB 2.0 x 2, OPS USB 3.0 X 1, VGA in x1
Display Control IR, RS232, LAN, HDMI-CEC, Keypad IR, RS232, LAN, HDMI-CEC, Keypad IR, RS232, LAN, HDMI-CEC, Keypad IR, RS232, LAN, HDMI-CEC, Keypad IR, RS232, LAN, HDMI-CEC, Keypad
Audio Input Phone jack Phone jack Phone jack Phone jack Phone jack
Audio Output Phone jack, S/PDIF Phone jack, S/PDIF Phone jack, S/PDIF Phone jack, S/PDIF Phone jack, S/PDIF
Display Active Area 47.6" x 26.8" (1209.6mm x 680.3mm) 47.6" x 26.8" (1209.6mm x 680.3mm) 47.6" x 26.7" (1209.6mm x 680.4mm) 47.6" x 26.7" (1209.6mm x 680.4mm) 47.6" x 26.7" (1209.6mm x 680.4mm)
Display Dimensions w/Handles (W x H x D) 47.7" x 26.8" x 4.0" (1210.5mm x 681.2mm x 101.8mm) 47.7" x 26.8" x 4.0"(1210.5mm x 681.2mm x 101.8mm) 47.7" x 26.9" x 4.0"(1212.2mm x 683.0mm x 102.2mm) 47.7" x 26.9" x 4.0" (1212.2mm x 683.0mm x 102.2mm) 47.8" x 26.9" x 4.0" (1213.4mm x 684.2mm x 102.7mm)
Display Dimensions w/o Handles (W x H X D) 47.7" x 26.8" x 3.8" (1210.5mm x 681.2mm x 97.1mm) 47.7" x 26.8" x 3.8"(1210.5mm x 681.2mm x 97.1mm) 47.7" x 26.9" x 3.8"(1212.2mm x 683.0mm x 97.5mm) 47.7" x 26.9" x 3.8" (1212.2mm x 683.0mm x 97.5mm) 47.8" x 26.9" x 3.9" (1213.4mm x 684.2mm x 98.0mm)
Mount VESA 400mm x 400mm VESA 400mm x 400mm VESA 400mm x 400mm VESA 400mm x 400mm VESA 400mm x 400mm
Orientation Landscape/Portrait Landscape/Portrait Landscape/Portrait Landscape/Portrait Landscape/Portrait
Display Weight 52 lb (23 kg) 52 lbs (23 kg) 55 lbs (25 kg) 55 lb (25 kg) 58 lbs (26 kg)
Weight (Shipping) 76 lb (35 kg) 76 lbs (35 kg) 78 lb (35 kg) 78 lb (35 kg) 91 lb (41 kg)
Features OPS slot, on/off scheduling, up to 10x10 video wall scaling, carrying handles OPS slot, on/off scheduling, up to 10x10 video wall scaling, carrying handles OPS slot, on/off scheduling, up to 10x10 video wall scaling, carrying handles OPS slot, on/off scheduling, up to 10x10 video wall scaling, carrying handles OPS slot, on/off scheduling, up to 10x10 video wall scaling, carrying handles
Speakers 10W x 2 built-in 10W x 2 built-in 10W x 2 built-in 10W x 2 built-in 10W x 2 built-in
Enclosure Metal Metal Metal Metal Metal
Fanless Yes Yes Yes Yes Yes
Line Voltage 100-240V; 49/61Hz 100-240V; 49/61Hz 100-240V; 49/61Hz 100-240V; 49/61Hz 100-240V; 49/61Hz
Power Consumption (typ) 115W 130W 115W 95W 75W
Operating Temperature 0-40°C (32 -104°F) 0-40°C (32 -104°F) 0-40°C (32 -104°F) 0-40°C (32 -104°F) 0-40°C (32 -104°F)
Operating Relative Humidity 20-85% 20-85% 20-85% 20-85% 20-85%
Service and Support/Warranty 3-year Advance Exchange 3-year Advance Exchange 3-year Advance Exchange 3-year Advance Exchange 3-year Advance Exchange
Recommended Usage Up to 24x7 operation Up to 24x7 operation Up to 24x7 operation Up to 24x7 operation Up to 24x7 operation
Product Approvals FCC Class A, cTUVus, CE, RoHS FCC Class A, cTUVus, CE, RoHS FCC Class A, cTUVus, CE, RoHS FCC Class A, cTUVus, CE, RoHS FCC Class A, cTUVus, CE, RoHS
ENERGY STAR Certified Yes No Yes Yes Yes
In the Box VM55MX-M2 display, 1.8m AC Power Cord (US), 1.8m AC Power Cord (EU), 1.8m DisplayPort cable, Remote control, IR Receiver, IR loop cable, RS-232 cable, RS-232 loop cable, alignment brackets, cable clips, Quick Start Guide VM55LX-M2 display, 1.8m AC Power Cord (US), 1.8m AC Power Cord (EU), 1.8m DisplayPort cable, Remote control, IR Receiver, IR loop cable, RS-232 cable, RS-232 loop cable, alignment brackets, cable clips, Quick Start Guide VM55MX-X2 display, 1.8m AC Power Cord (US), 1.8m AC Power Cord (EU), 1.8m DisplayPort cable, Remote control, IR Receiver, IR loop cable, RS-232 cable, RS-232 loop cable, alignment brackets, cable clips Quick Start Guide VM55LX-X2 display, 1.8m AC Power Cord (US), 1.8m AC Power Cord (EU), 1.8m DisplayPort cable, Remote control, IR Receiver, IR loop cable, RS-232 cable, RS-232 loop cable, alignment brackets, cable clips Quick Start Guide VM55LX-U2 display, 1.8m C14 Connector AC Power Cord (US), 1.8m C14 Connector AC Power Cord (EU), 1.8m DisplayPort cable, Remote control, IR Receiver, IR loop cable, RS-232 cable, RS-232 loop cable, alignment brackets, cable clips Quick Start Guide
