Planar DirectLight Ultra Series
Indoor LED Video Wall
Premium indoor displays with MicroLED models, powerful processing and active alignment
Planar® DirectLight® Ultra™ Series LED video walls deliver an always-on, high-performance, high-resolution display experience with the finest pixel pitches from 0.6 to 1.2 millimeters for mission-critical and high-end applications. The Planar DirectLight Ultra Series features several display technology advancements, including MicroLED, that combine to deliver high performance.
- 0.6, 0.7, 0.9, & 1.2mm pixel pitches
- MicroLED Technology on most models
- Planar® ActivAlign™ Alignment System
- Leyard Europe EverCare Lifetime Limited Warranty
Industry Awards
Highlights
Lifetime Protection
The Planar DirectLight Ultra Series is backed by the EverCare™ Lifetime Limited Warranty, which covers the entire display, from the sub-pixels to the video controller, for as long as it is used in a fixed location.
High-Res MicroLED
Less than half the size of the smallest standard LEDs, MicroLEDs deliver up to three times the brightness, excellent color uniformity, better overall contrast and deeper blacks. They are also more energy efficient and produce less heat for the same brightness. Their small size enables the highest resolution for LED, even in smaller video walls.
Continuous Alignment
Planar® ActivAlign™ proprietary self-adjusting alignment technology maintains high visual performance over time and overcomes issues such as vibration and thermal expansion that can cause LED modules to shift and disrupt the seamless visual experience.
Powerful Video Control
The compact and scalable Planar® WallDirector™ Video Controller drives the video wall at native resolution, while the accompanying web-based management software simplifies setup, configuration, operation, and monitoring. The 1U rack mount video controller captures multiple 4K inputs and can be stacked with additional controllers for more video inputs.
HDR Ready
DirectLight Ultra displays are ready for High Dynamic Range content, maximizing the image quality of each pixel for brighter whites, darker blacks and more true-to-life colors.
Reliable Off-Board Power
The Planar® Remote Power Supply (RPS) takes the heat, depth, noise, weight, service points, and outlets away from the video wall and into a rack room. Featuring n+1 redundant, hot-swappable power modules, the Planar RPS is available in 110V and 220V and has a low-power standby mode when not in use 24x7.
Complete™ Solutions
Off-the-Shelf or Customized Video Walls
Planar® DirectLight® Ultra Complete™ 4K or 8K LED video wall displays reduce deployment time and complexity. Simply select the screen size that best suits your environment and application and get everything in one complete, hassle-free solution.
Included:
Available Sizes:
108" | 136" | 163" | 217"
Add-Ons & Accessories
Extended Ruggedness & Optics
Planar® ERO-LED™ (Extended Ruggedness and Optics™) proprietary protective coating provides durability in high-traffic and interactive environments. It provides a matte finish that maintains the visual performance of the video wall.
Enable Interactivity
Optimize video walls for interactivity with a custom 32-point touch system and Planar ERO-LED. Touch displays are often limited to 16:9 dimensions, but the custom touch solution opens the door to a wider variety of sizes and shapes.
Specifications
| DLU-0.6 | DLU-0.7 | DLU-0.9 | DLU-1.2 | |
|---|---|---|---|---|
| Pixel Pitch (mm) | 0.625mm | 0.78125mm | 0.9375mm | 1.2mm |
| Driver IC | 27001 - 69 channel 16bit processing | 27001 - 69 channel 16bit processing | 27001 - 69 channel 16bit processing | 27001 - 69 channel 16bit processing |
| Cabinet Size (WxHxD) | 600 x 337.5 x 69 mm (23.6" x 13.3" x 2.7") | 600 x 337.5 x 69 mm (23.6” x 13.3” x 2.7”) | 600 x 337.5 x 69 mm (23.6” x 13.3” x 2.7”) | 600 x 337.5 x 69 mm (23.6” x 13.3” x 2.7”) |
| Cabinet Resolution (WxH) | 960 x 540 | 768 x 432 | 640 x 360 | 480 x 270 |
| Pixel Density (pixel/m²) | 2560000 per m² | 1638400 per m² | 1137778 per m² | 640000 per m² |
| Modules per Cabinet (WxH) | 4 x 2 | 4 x 2 | 4 x 2 | 4 x 2 |
| Module Resolution (WxH) | 240 x 270 | 192 x 216 | 160 x 180 | 120 x 135 |
| Power Consumption, max. (W/m²) | 140 W | 140 W | 140 W | 140 W |
| Cabinet Weight (kg) | ≤9kg | ≤ 20lbs | ≤9kg | ≤ 20lbs | ≤9kg | ≤ 20lbs | ≤9kg | ≤ 20lbs |
| Brightness, max. (cd/m²) | 1000 nits | 1200 nits | 1600 nits | 800 nits |
| Color Temperature (K) | 3000-10000 adjustable | 3000-10000 adjustable | 3000-10000 adjustable | 3000-10000 adjustable |
| Viewing Angle, Horizontal (°) | >160° | >160° | >160° | >160° |
| Viewing Angle, Vertical (°) | >160° | >160° | >160° | >140° |
| Refresh Rate (Hz) | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz |
| Lifetime (hrs) | 100000 hours | 100000 hours | 100000 hours | 100000 hours |
| Wall Mounts and Trim | Included | Included | Included | Included |
| Operation Temperature (°C) | -10° to 35° C | 14° to 95° F | -10° to 35° C | 14° to 95° F | -10° to 35° C | 14° to 95° F | -10° to 35° C | 14° to 95° F |
| Operation Humidity (RH) | 10-85% RH, non-condensing | 10-85% RH, non-condensing | 10-85% RH, non-condensing | 10-85% RH, non-condensing |
| Storage Temperature (°C) | -20° to 60° C | -4° to 140° F | -20° to 60° C | -4° to 140° F | -20° to 60° C | -4° to 140° F | -20° to 60° C | -4° to 140° F |
| Storage Humidity (RH) | 10-85% RH, non-condensing | 10-85% RH, non-condensing | 10-85% RH, non-condensing | 10-85% RH, non-condensing |
| LED Type | MicroLED 4-in-1 | MicroLED 4-in-1 | MicroLED 4-in-1 | SMD RGB |
| Drive Mode | Common Cathode | Common Cathode | Common Cathode | Common Cathode |
| Cabinet Diagonal | 27.1" (688.4mm) | 27.1" (688.4mm) | 27.1" (688.4mm) | 27.1" (688.4mm) |
| Installed Depth (from Wall) | 95.2mm (3.75") | 95.2mm (3.75") | 95.2mm (3.75") | 95.2mm (3.75") |
| Module Dimension (WxH, mm) | 150 x 168.75 mm | 150 x 168.75 mm | 150 x 168.75 mm | 150 x 168.75 mm |
| HDR (High Dynamic Range) | HDR | HDR | HDR | HDR |
| Frame Rate (Hz) | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| Color Gamut | >93% DCI-P3 | >93% DCI-P3 | >93% DCI-P3 | >93% DCI-P3 |
| Contrast Ratio | 10000:1 | 10000:1 | 10000:1 | 7000:1 |
| Service Access | Front: Module removal. All internal electronics accessible. | Front: Module removal. All internal electronics accessible. | Front: Module removal. All internal electronics accessible. | Front: Module removal. All internal electronics accessible. |
| HDMI® | Planar utilizes HDMI® standards in this product. The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. | Planar utilizes HDMI® standards in this product. The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. | Planar utilizes HDMI® standards in this product. The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. | Planar utilizes HDMI® standards in this product. The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. |
| TAA Compliant | Yes | Yes | Yes | Yes |
| Download Specs | Download Specs | Download Specs | Download Specs |
Show all specifications

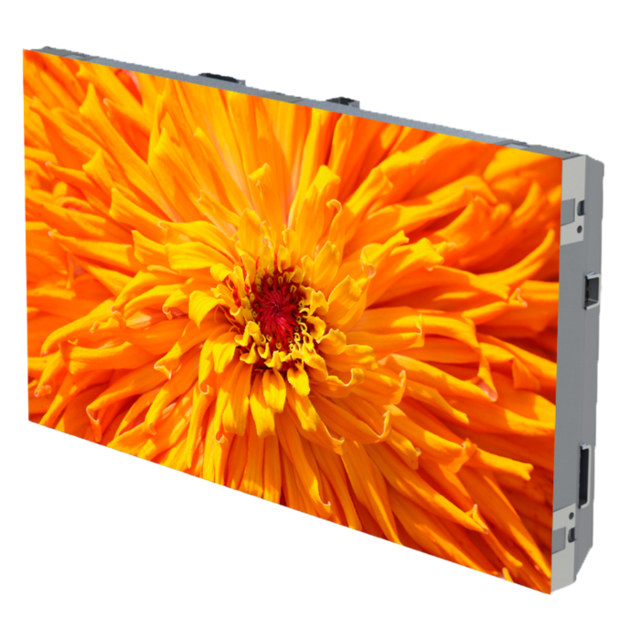

Product Images
