5K Display Perfect for Unified Communication

The Planar® UltraRes™ W Series ultra-wide format LCD display is ideally sized for the most popular unified communications and video collaboration platforms, such as Microsoft Teams®, with its Front Row layout. Its 5K resolution and 21:9 aspect ratio are ideal for native cinematic video playback. Its commercial-grade construction provides 24x7 reliability, and remote monitoring simplifies email alerts in case of an unexpected event. View two sources simultaneously with dual layout or Picture-in-Picture. A multi-point projected capacitive touch model is available, as well as Planar® ERO-LCD™ (Extended Ruggedness and Optics™) protective glass. Displays are TAA compliant.

  • 105" size
  • 21:9 aspect ratio
  • 5K resolution (5120 x 2160)
  • Designed for 24 x 7 use
  • Projected capacitive touch screen model available

Product Highlights

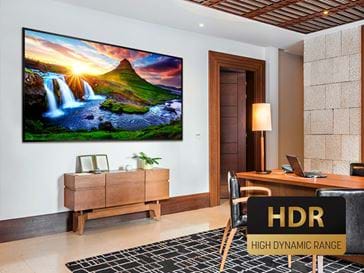

HDR Ready

Displays are ready for High Dynamic Range content, maximizing the image quality of each pixel for brighter whites, darker blacks and more true-to-life colors.

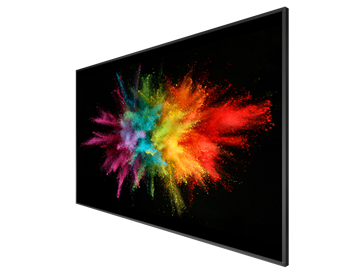

Wide Color Gamut

Displays are designed to show a greater percentage of the visible color spectrum, rendering on-screen content with the hues and shades intended by the creators for a more true-to-life viewing experience.

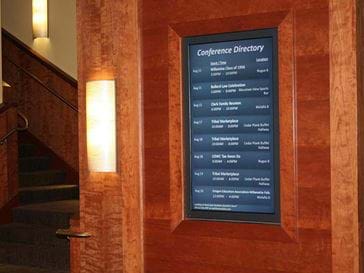

Landscape or Portrait

Displays can be mounted in either landscape or portrait orientation, opening the door to a wider range of deployment environments and applications, and allowing for greater creativity in content development.

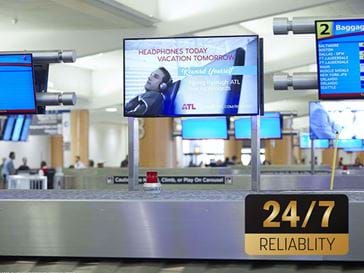

Always-On Reliability

Displays are designed for mission-critical environments where displays must withstand extended or continuous use and deliver exceptional performance day and night.

On Your Schedule

Schedule automated events such as recalling image layout configurations, adjusting brightness, and powering on/off. Scheduling events can save power and administrative time.

Stay Informed

Browser-based remote monitoring software displays information about the display and enables users to make adjustments to zones, brightness, power settings, and more. Set up email alerts to be notified of specific performance events and stay in the loop.

Specifications Standard Models

Product Name URW105
Planar Part Number 998-3424-00
Display Resolution 5K (5120 x 2160)
Screen Size 105 in. (diagonal)
Aspect Ratio 21:9
Display Technology Direct-lit LED LCD
Haze 25%
Surface Treatment AG
Display Active Area 96.4" x 40.7" (2449.2mm x 1033.6mm)
Viewing Angle (typ) 178°
Backlight LED
Backlight life (1/2 brightness) 30,000 hrs (min)
Brightness (typ) 500 nits
Response Time (typ) 8 ms
Frame Rate 60Hz
Contrast Ratio (typ) 1200:1
Contrast Ratio - Dynamic 40000:1
Pixel Pitch 0.479 mm
Color Gamut 88% NTSC
HDR (High Dynamic Range) HDR10
Display Color >1 billion colors. Full 10 bit data path
External Connections DisplayPort 1.4 in x 2, DisplayPort out, HDMI 2.1 x 2 (HDCP 2.2), USB-C x 1, OPS x1, USB-A x4, USB-B x2
Modes 5120x2160 @ 24/25/30/50/60Hz; 3840x1600 @ 60Hz; 3440x1440 @ 60Hz; 2560x1080 @ 60Hz; 3840x2160 @ 24/25/30/50/60Hz; 1080p @ 24/25/30/50/60Hz
Display Control IR, RS-232, LAN, HDMI-CEC, Keypad
Cabinet Dimensions (W x H x D) 98.7" x 43.0" x 3.5" (2507.5mm x 1091.2mm x 88.6mm)
Cabinet Dimensions with Handles (W x H x D) 98.7" x 43.0" x 3.5" (2507.5mm x 1091.2mm x 88.6mm)
Orientation Landscape/Portrait
Bezel Width 1.1" (27.5mm)
Display Edge to Active Area 1.1" (28.8mm)
Weight 158.7 lbs (72 kg)
Audio Output PC Line Out, S/PDIF
Speakers 15W x 2 built-in
Enclosure Metal, Industrial
Mounting VESA: 1000mm x 600mm
Fanless Yes
Line Voltage 100-240V; 50/60Hz
Power Consumption (typ) 372W (standby: <0.5W)
AC Output Current (max) 3A
Operating Temperature 0° to +40°C (32° to 104°F) up to 3000m
Humidity 20 - 85% RH (non-condensing)
Options / Features On/Off scheduling, presets, convenient mounting points for third-party accessories
Auto Brightness Control Ambient light sensor
Multi-Source Views PiP, Dual
Approvals FCC Class A, CE, cTUVus, RoHS
ENERGY STAR Certified In progress
TAA Compliance Yes
Security No WiFi, no Android O/S, signed and encrypted firmware, ability to disable communication interfaces, Secure Shell (SSH) protocol
Warranty 3 years Advance Exchange
Recommended Usage Up to 24x7
In the Box URW105 display, US and EU power cords, DP cable, USB-C cable, IR cable, remote control, cable clips and Quick Start Guide
UPC 8 10069 81085 0

Specifications Touch Models

Product Name URW105-ERO-T
Planar Part Number 998-3425-00
Protective Glass 3mm with AG+AF coating
Touch Technology Projected Capacitive: 50 points
OS Compatibility Windows 8, 10, 11, Mac OSX and Linux
Display Resolution 5K (5120 x 2160)
Screen Size 105 in. (diagonal)
Aspect Ratio 21:9
Display Technology Direct-lit LED LCD
Display Active Area 96.4" x 40.7" (2449.2mm x 1033.6mm)
Viewing Angle (typ) 178°
Backlight LED
Backlight life (1/2 brightness) 30,000 hrs (min)
Brightness (w/protective glass) 450 nits
Response Time (typ) 8 ms
Frame Rate 60Hz
Contrast Ratio (typ) 1200:1
Contrast Ratio - Dynamic 33000:1
Pixel Pitch 0.479 mm
Color Gamut 88% NTSC
HDR (High Dynamic Range) HDR10
Display Color >1 billion colors. Full 10 bit data path
External Connections DisplayPort 1.4 in x 2, DisplayPort out, HDMI 2.1 x 2 (HDCP 2.2), USB-C x 1, OPS x1, USB-A x4, USB-B x2
Modes 5120x2160 @ 24/25/30/50/60Hz; 3840x1600 @ 60Hz; 3440x1440 @ 60Hz; 2560x1080 @ 60Hz; 3840x2160 @ 24/25/30/50/60Hz; 1080p @ 24/25/30/50/60Hz
Display Control IR, RS-232, LAN, HDMI-CEC, Keypad
Cabinet Dimensions (W x H x D) 99.1" x 43.8" x 3.6" (2517.5mm x 1112.0mm x 90.6mm)
Cabinet Dimensions with Handles (W x H x D) 99.1" x 43.8" x 3.6" (2517.5mm x 1112.0mm x 90.6mm)
Orientation Landscape/Portrait
Bezel Width 0.1" (2.5mm)
Display Edge to Active Area 1.3" (31.8mm) left and right, 1.3" (32.2mm) top and 1.7" (42.2mm) bottom
Weight 218.3 lbs (99 kg)
Audio Output PC Line Out, S/PDIF
Speakers 15W x 2 built-in
Enclosure Metal, Industrial
Mounting VESA: 1000mm x 600mm
Fanless Yes
Line Voltage 100-240V; 50/60Hz
Power Consumption (typ) 372W (standby: <0.5W)
AC Output Current (max) 3A
Operating Temperature 0° to +40°C (32° to 104°F) up to 3000m
Humidity 20 - 85% RH (non-condensing)
Options / Features On/Off scheduling, presets, convenient mounting points for third-party accessories
Auto Brightness Control Ambient light sensor
Multi-Source Views PiP, Dual
Approvals FCC Class A, CE, cTUVus, RoHS
ENERGY STAR Certified In progress
TAA Compliance Yes
Security No WiFi, no Android O/S, signed and encrypted firmware, ability to disable communication interfaces, Secure Shell (SSH) protocol
Warranty 3 years Advance Exchange
Recommended Usage Up to 24x7
In the Box URW105-ERO-T display, US and EU power cords, DP cable, USB-C cable, USB A to B cable, IR cable, remote control, cable clips, 2mm tip passive stylus x1, and Quick Start Guide
UPC 8 10069 81086 7

Add-Ons & Accessories

EXTENDED RUGGEDNESS & OPTICS

Planar® ERO-LCD™ (Extended Ruggedness and Optics™) protective glass is bonded to the front of the display using a proprietary process, creating a highly durable display surface that withstands the rigors of high-traffic and interactive environments. It also provides up to 300% higher perceived contrast.

MODULES & DRIVERS

Control system modules, drivers, and plug-ins simplify dealer integration and consultant recommendations. Crestron and Q-SYS drivers and plug-ins can save hours of programming, installation, and cost.
