Serie Planar Simplicity M
Pantallas LCD 4K
Solución de señalización digital económica con reproducción USB, programación de encendido/apagado y táctil opcional
Las pantallas LCD 4K de la serie Planar Simplicity M permiten la transmisión y reproducción multimedia de señalización digital de alta definición de forma sencilla. Algunas pantallas están diseñadas para mitigar las amenazas de ciberseguridad y cuentan con la certificación ENERGY STAR®. También hay disponibles modelos táctiles multipunto.
Las pantallas de la serie Simplicity M tienen un diseño elegante y estilizado y una funcionalidad que prosperan en entornos comerciales con un horario de apertura regular, como tiendas minoristas, restaurantes, consultas médicas y zonas de reuniones corporativas.
- Tamaños disponibles: 50"
- Reproducción multimedia USB
- Modelos con certificación ENERGY STAR
- Modelos táctiles disponibles
Highlights
Ajustes automatizados
Las pantallas Simplicity M ofrecen la posibilidad de programar ajustes automatizados de encendido y apagado y tiempos de reproducción multimedia, de modo que la señalización se reproduzca cuando sea necesario y las pantallas ahorren energía cuando no lo sea.
Eficiencia energética
Nuestras pantallas Simplicity M han obtenido la etiqueta ENERGY STAR® del gobierno estadounidense, que las identifica como una solución que ahorra en costes de funcionamiento y electricidad.

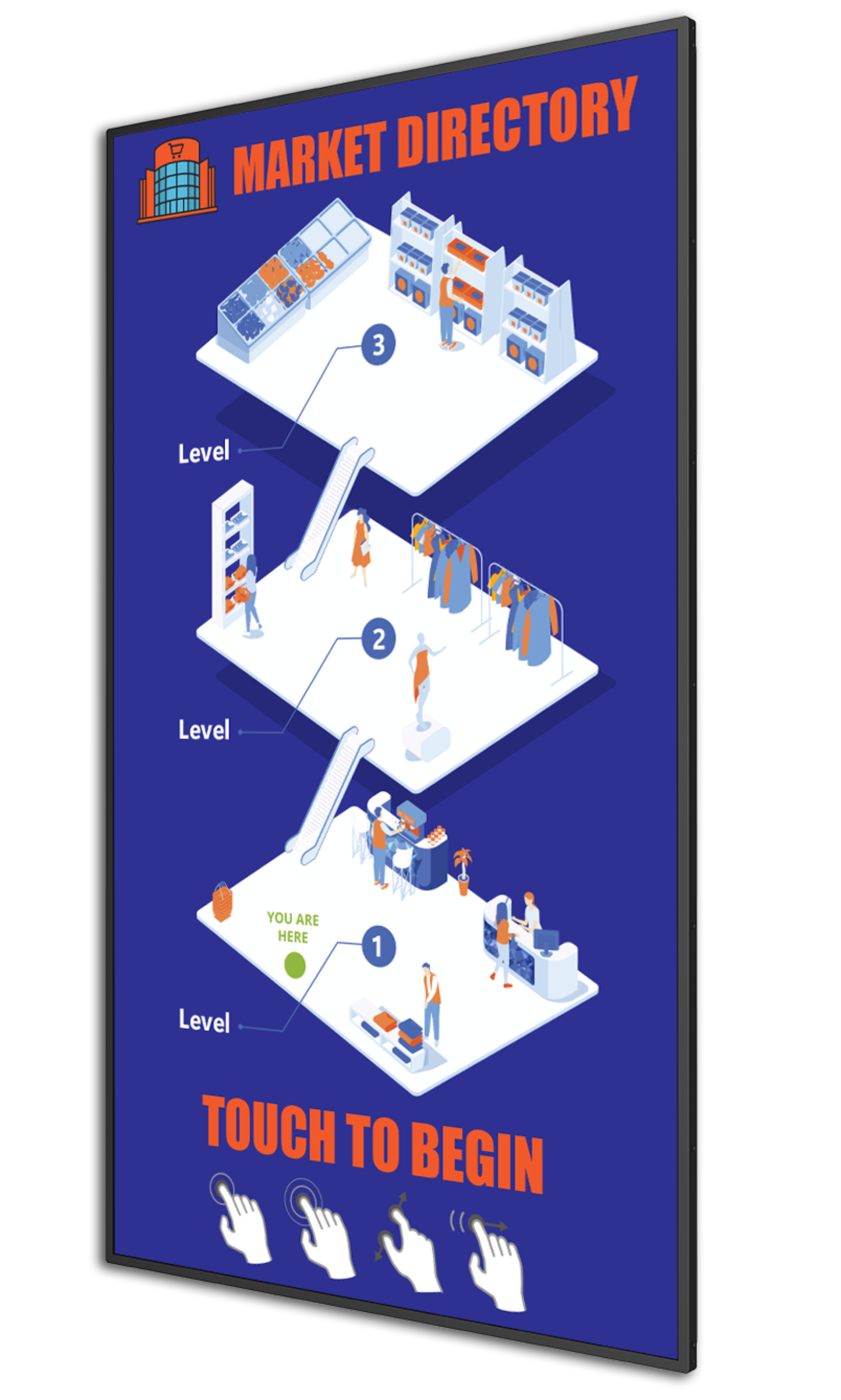

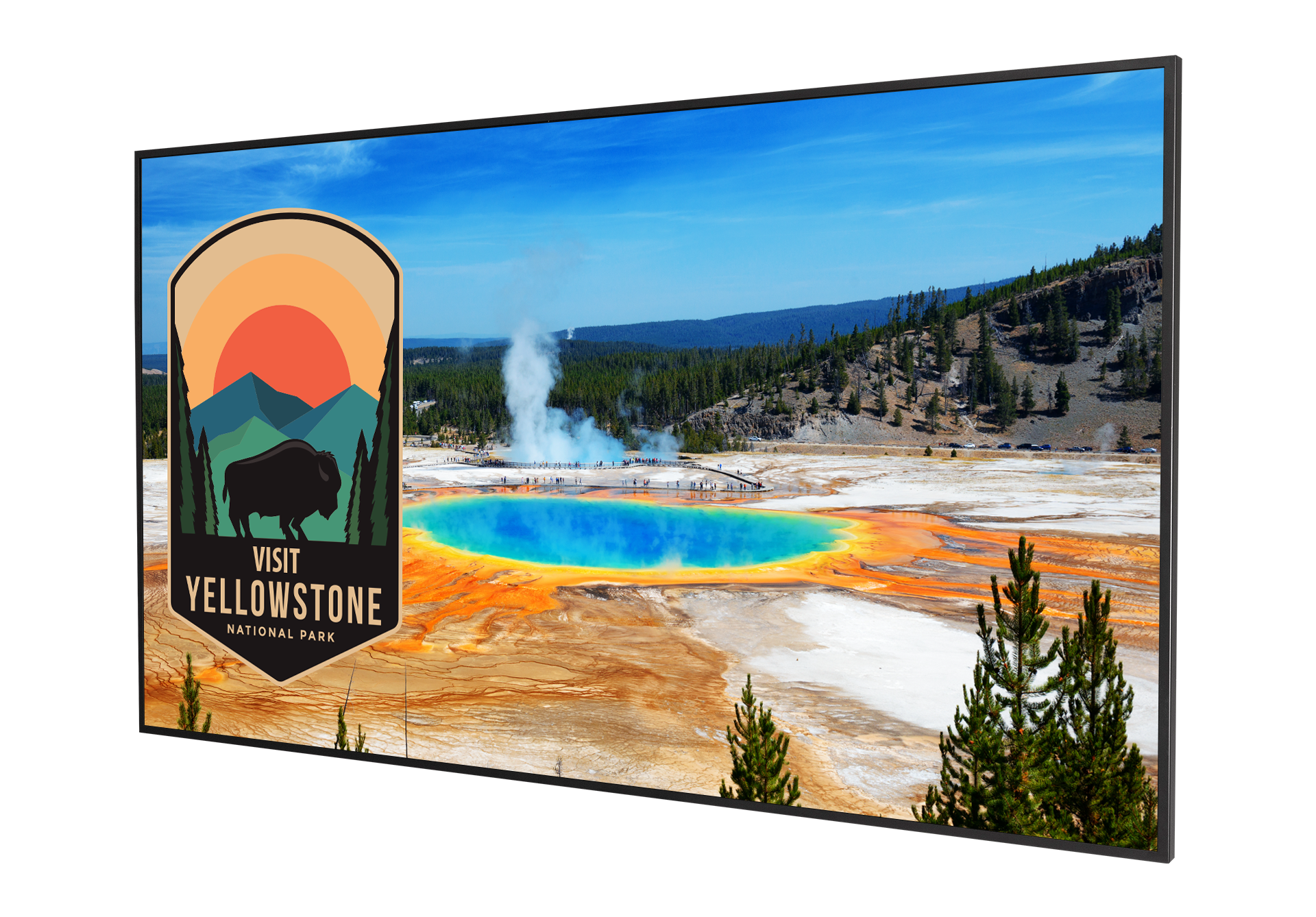

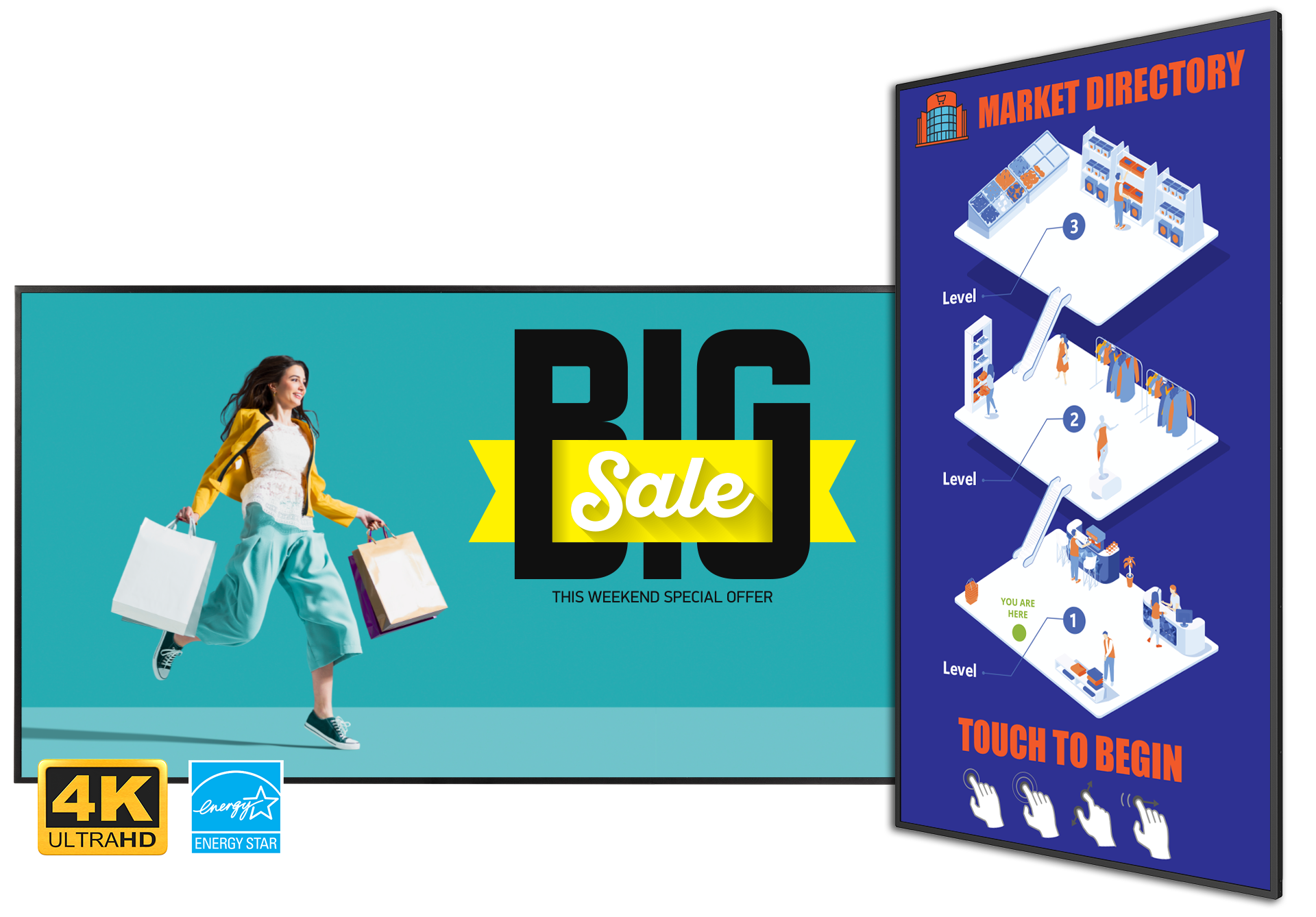

Horizontal o vertical
Las pantallas de esta serie pueden montarse en orientación horizontal o vertical, lo que abre la puerta a una gama más amplia de entornos de despliegue y aplicaciones, y permite una mayor creatividad en el desarrollo de contenidos.
Add-Ons y Accesorios
Activar la interactividad
Optimice las pantallas para la interactividad con un sistema táctil multipunto ideal para entornos de colaboración, presentación y aprendizaje que requieren pizarras, anotaciones y un mejor compromiso general.
Soportes y accesorios
Existe una gran variedad de accesorios ajustables y fáciles de usar para casi cualquier aplicación, tanto si necesita un soporte de pared, de techo o de mesa.
Especificaciones
| SLM50 | SLM502-T | SLM502 | |
|---|---|---|---|
| Haze | 2% | - | 25% |
| Surface Treatment | - | - | AG |
| Brillo, típ. (cd/m²) | 500 nits | 400 nits | 500 nits |
| Pixel Pitch (mm) | 0.285mm x 0.285mm | 0.285mm x 0.285mm | 0.285mm x 0.285mm |
| Tamaño cabinet (AnxAlxPr) | 1128.4mm x 649.0mm x 63.5mm (44.4" x 25.6" x 2.5") | 1147.4mm x 668.0mm x 62.8mm (45.2" x 26.3" x 2.5") | 1121.6mm x 646.0mm x 59.8mm (44.2" x 25.4" x 2.4") |
| Cabinet Size (WxHxD) with Handles | Not Applicable | Not Applicable | Not Applicable |
| Display Weight (kg) Shipping | 20 kg (43 lbs) | 21.7 kg (47.8 lbs) | 17.2 kg (37.9 lbs) |
| Temperatura de servicio (°C) | 0° to +40°C (32° to 104°F) up to 3000m | 0° to +40°C (32° to 104°F) up to 3000m | 0° to +40°C (32° to 104°F) up to 3000m |
| Humedad de funcionamiento (HR) | 20 - 85% RH (non-condensing) | 20 - 85% RH (non-condensing) | 20 - 85% RH (non-condensing) |
| Operating System | Proprietary OS based on Android 8.0. Google Play and third-party apps are not supported by Planar. | Proprietary OS based on Android 10.0. Google Play and third-party apps are not supported by Planar. | Proprietary OS based on Android 10.0. Google Play and third-party apps are not supported by Planar. |
| Storage | 16GB (4.5GB available) | TBDGB (10.5GB available) | TBDGB (10.5GB available) |
| ENERGY STAR® Certified | - | Yes | Yes |
| Cyber Security | - | EN 303 645 certified | EN 303 645 certified |
| Planar Part Number | 998-2763-01 | 998-3481-00 | 998-3475-00 |
| Protective Glass | - | 2mm with AG coating | - |
| Touch Technology | - | 20 points | - |
| OS Compatibility | - | Windows 10, 11, Mac OSX and Linux | - |
| Display Resolution | Ultra HD (3840 x 2160) | Ultra HD (3840 x 2160) | Ultra HD (3840 x 2160) |
| Screen Size | 127cm / 50" (diagonal) | 127cm / 50" (diagonal) | 127cm / 50" (diagonal) |
| Aspect Ratio | 16:9 | 16:9 | 16:9 |
| Display Technology | Direct-lit LED LCD | Direct-lit LED LCD | Direct-lit LED LCD |
| Viewing Angle (typ) | 178° | 178° | 178° |
| Backlight | LED | LED | LED |
| Backlight life (half brightness) | - | 30,000 hrs (min) | 30,000 hrs (min) |
| Response Time (typ) | 8 ms | 9.5 ms | 9.5 ms |
| Frame Rate (Hz) | 60Hz | 60Hz | 60Hz |
| Contraste | 4000:1 | 5000:1 | 5000:1 |
| Color Gamut | 72% NTSC | 72% NTSC | 72% NTSC |
| Display Color | >1 billion colors. Full 10 bit data path | >1 billion colors. Full 10 bit data path | >1 billion colors. Full 10 bit data path |
| External Connections | HDMI® 2.0 x 2 (HDCP 2.2), DVI-D x 1, VGA x 1, Media Player | HDMI® x 2 (HDCP 2.2), USB-C x 1, VGA x 1, USB 3.0 x1, USB 2.0 x1, Media Player, USB-B (for touch controller) | HDMI® x 2 (HDCP 2.2), USB-C x 1, VGA x 1, USB 3.0 x1, USB 2.0 x1, Media Player |
| Modes | 3840x2160 @ 24/25/30/60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 50/60Hz; 1080i @ 50/60 Hz | 3840x2160 @ 24/25/30/60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 50/60Hz; 1080i @ 50/60 Hz | 3840x2160 @ 24/25/30/60Hz; 480p, 576p, 720p @ 50/60 Hz; 1080p @ 50/60Hz; 1080i @ 50/60 Hz |
| Display Control | IR, RS-232, LAN, HDMI-CEC, Keypad | IR, RS-232, LAN, HDMI-CEC, Keypad | IR, RS-232, LAN, HDMI-CEC, Keypad |
| Orientation | Landscape only | Landscape/Portrait | Landscape/Portrait |
| Bezel Width | 0.6" (14.9mm) | 0.8" (19.5mm) | 0.4" (10.9mm) |
| Display Active Area (WxH) | 1095.8mm x 616.4mm (43.1" x 24.3") | 1097.8mm x 618.4mm (43.2" x 24.3") | 1099.8mm x 620.4mm (43.3" x 24.4") |
| Display Edge to Active Area | - | 1.1" (26.7mm) | 1.1" (26.7mm) |
| Display Weight (kg) | 15 kg (33 lbs) | 17.7 kg (39.0 lbs) | 13.2 kg (29.1 lbs) |
| Audio Input | PC Line In | PC Line In | PC Line In |
| Audio Output | PC Line Out | PC Line Out, S/PDIF | PC Line Out, S/PDIF |
| Speakers | 10W x 2 built-in | 10W x 2 built-in | 10W x 2 built-in |
| Enclosure | - | Plastic rear enclosure | Plastic rear enclosure |
| Mounting | VESA: 400mm x 400mm | VESA: 200mm x 200mm | VESA: 200mm x 200mm |
| Fanless | Yes | Yes | Yes |
| Line Voltage | 100-240V; 50/60Hz | 100-240V; 50/60Hz | 100-240V; 50/60Hz |
| Power Consumption (typ) | 113W (standby: <0.5W) | 100W (standby: <0.5W) | 100W (standby: <0.5W) |
| Options / Features | USB playback, logo-free bezel, lockable rear keypad | USB playback, logo-free bezel, lockable rear keypad | USB playback, logo-free bezel, lockable rear keypad |
| Approvals | FCC Class A, cTUVus, CE, RoHS | FCC Class A, cTUVus, CE, RoHS, EN 303 645 | FCC Class A, cTUVus, CE, RoHS, EN 303 645 |
| Security | - | No WiFi, Secure Shell (SSH) protocol, EN 303 645 certified | No WiFi, Secure Shell (SSH) protocol, EN 303 645 certified |
| Garantía | 2 years | 3 years | 3 years |
| Recommended Usage | Up to 16 hours per day | Up to 16 hours per day | Up to 16 hours per day |
| In the Box | SLM50 display, C14 connector power cord - 1.8m, HDMI cable - 1.8m, RS-232 cable, IR cable, remote control, cable clamps, Quick Start Guide | SLM502-T display, C14 connector US power cord - 1.8m, C14 connector EU power cord - 1.8m, HDMI cable - 1.8m, USB-C cable 1.8m, RS-232 cable, IR cable, USB A to B cable, remote control, cable clamps, 3mm tip passive stylus x1, Quick Start Guide | SLM502 display, C14 connector US power cord - 1.8m, C14 connector EU power cord - 1.8m, HDMI cable - 1.8m, USB-C cable 1.8m, RS-232 cable, IR cable, remote control, cable clamps, Quick Start Guide |
| UPC | 8 10069 81038 6 | 8 10069 81097 3 | 8 10069 81091 1 |
| Download Specs | Download Specs | Download Specs |
Todas las especificaciones
