Leyard VHC Series

Indoor LED Video Wall

Get a quote

  1. Leyard
  2. Products
  3. LED Video Walls
  4. Indoor LED Video Walls
  5. Leyard VHC Series

  • Available in, 1.2, 1.5, 1.8 and 2.5mm pixel pitches
  • HDR-ready, wide color gamut, high gray depth
  • Full front maintenance

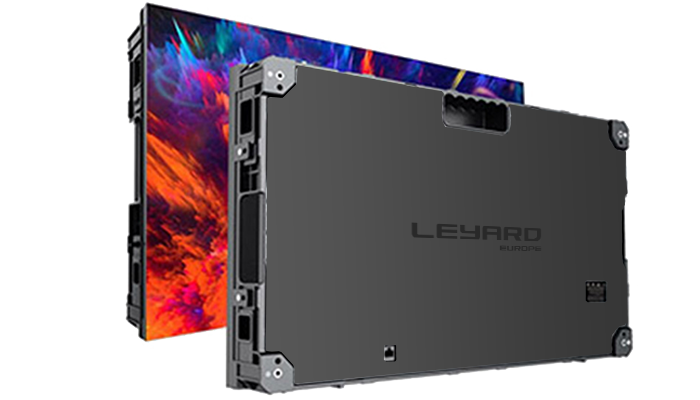

  • Lightweight die-cast aluminum cabinet
  • 100,000 h lifetime, industrial-grade build

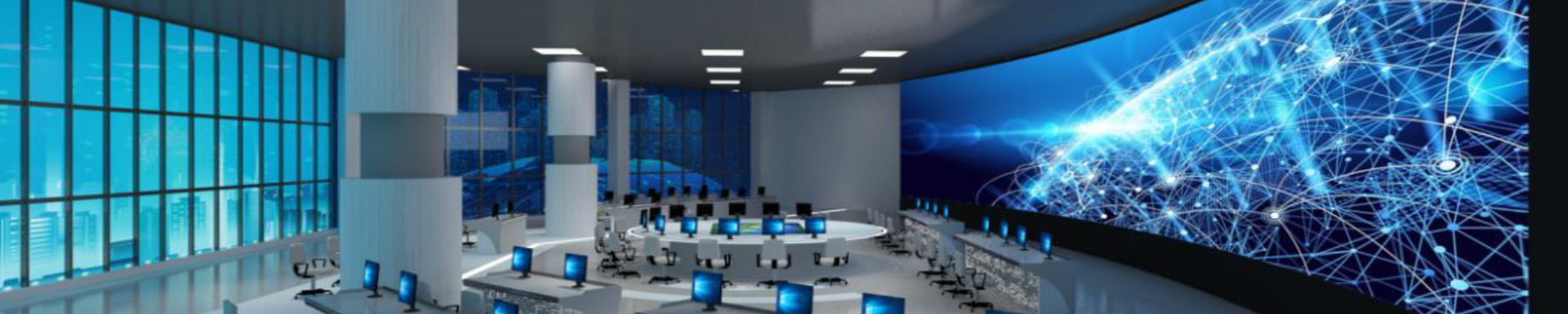

  • Ideally suited for applications in transportation, corporate, retail and public spaces
  • Made in Europe

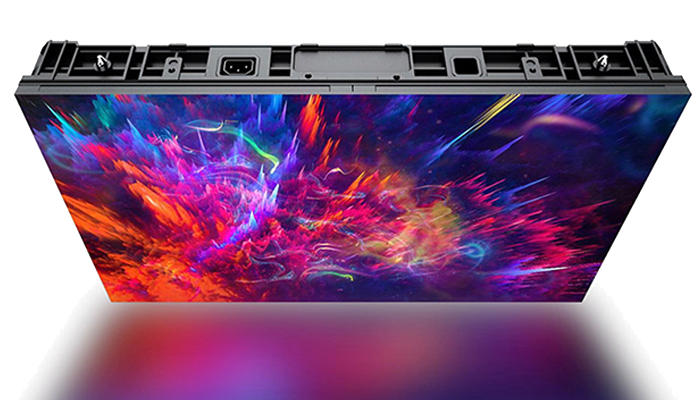

Product Images

Specifications

VHC-1.2 VHC-1.5 VHC-1.8 VHC-2.5
LED Type SMD1010 SMD1212 SMD1515 SMD2121
Pixel Pitch (mm) 1.25 1.5625 1.875 2.5
Cabinet Resolution (WxH) 240 x 270 192 x 216 160 x 180 120 x 135
Module Resolution (WxH) 300 x 337.5 x 13 300 x 337.5 x 13 300 x 337.5 x 13 300 x 337.5 x 13
Module Size (mm) (WxHxD) 0.95 0.95 0.95 0.95
Module Weight (kg) 2 x 1 2 x 1 2 x 1 2 x 1
Module Composition (WxH) 480 x 270 384 x 216 320 x 180 240 x 135
Cabinet Size (WxHxD) 600 x 337.5 x 72 600 x 337.5 x 72 600 x 337.5 x 72 600 x 337.5 x 72
Unit Area (m²) 0.2025 0.2025 0.2025 0.2025
Cabinet Weight (kg) 6.5 6.5 6.5 6.5
Pixel Density (pixel/m²) 640,000 409,600 284,089 160,000
Surface Flatness (mm) ≤0.3 ≤0.3 ≤0.3 ≤0.3
Brightness Calibration Yes Yes Yes Yes
Color Calibration Yes Yes Yes Yes
Brightness, typ. (cd/m²) 600 600 600 600
Color Temperature (K) 3,200 - 9,300, Adjustable 3,200 - 9,300, Adjustable 3,200 - 9,300, Adjustable 3,200 - 9,300, Adjustable
Viewing Angle, Horizontal (°) 160 160 160 160
Viewing Angle, Vertical (°) 150 150 150 150
Deviation of LED Luminance Center <3% <3% <3% <3%
Brightness Uniformity ≥97% ≥97% ≥97% ≥97%
Chromaticity Uniformity Within ±0.003Cx,Cy Within ±0.003Cx,Cy Within ±0.003Cx,Cy Within ±0.003Cx,Cy
Contrast Ratio 5000:1 5000:1 5000:1 5000:1
Grey Scale Processing 14 (HDR10, HDR10 Pro) 14 (HDR10, HDR10 Pro) 14 (HDR10, HDR10 Pro) 14 (HDR10, HDR10 Pro)
Power Consumption, max. (W/m²) 580 530 510 460
Power Consumption, typ. (W/m²) 255 225 205 180
Power Supply AC100 ~ 240V (50/60Hz) AC100 ~ 240V (50/60Hz) AC100 ~ 240V (50/60Hz) AC100 ~ 240V (50/60Hz)
Drive Mode Constant current drive Constant current drive Constant current drive Constant current drive
Scanning mode 60s 54s 60s 56s
Frame Rate (Hz) 50&60 50&60 50&60 50&60
Refresh Rate (Hz) 3840 3840 3840 3840
Lifetime (hrs) 100 100 100 100
Operation Temperature (°C) -20°C to 40°C -20°C to 40°C -20°C to 40°C -20°C to 40°C
Storage Temperature (°C) -40°C to 60°C -40°C to 60°C -40°C to 60°C -40°C to 60°C
Operation Humidity (RH) 10 ~ 80% no condensation 10 ~ 80% no condensation 10 ~ 80% no condensation 10 ~ 80% no condensation
Storage Humidity (RH) 10 ~ 85% no condensation 10 ~ 85% no condensation 10 ~ 85% no condensation 10 ~ 85% no condensation
IP Level CE, FCC, cTUVus, CB, KC, CCC, EMC Class A CE, FCC, cTUVus, CB, KC, CCC, EMC Class A CE, FCC, cTUVus, CB, KC, CCC, EMC Class A CE, FCC, cTUVus, CB, KC, CCC, EMC Class A
Approvals EN 13501-1 EN 13501-1 EN 13501-1 EN 13501-1
get_app Download Specs get_app Download Specs get_app Download Specs get_app Download Specs
Show all specifications
