Leyard Venue Pro Series
Quick Install LED Video Wall
Leyard Venue™ Pro Series indoor LED video walls are designed to meet the needs of temporary events, large venues and fixed installations. They offer full front or rear access to electronics for versatile set-up and magnetically attachable cabinets with a quick-lock system that supports single-person handling.
Installation Variety by Design

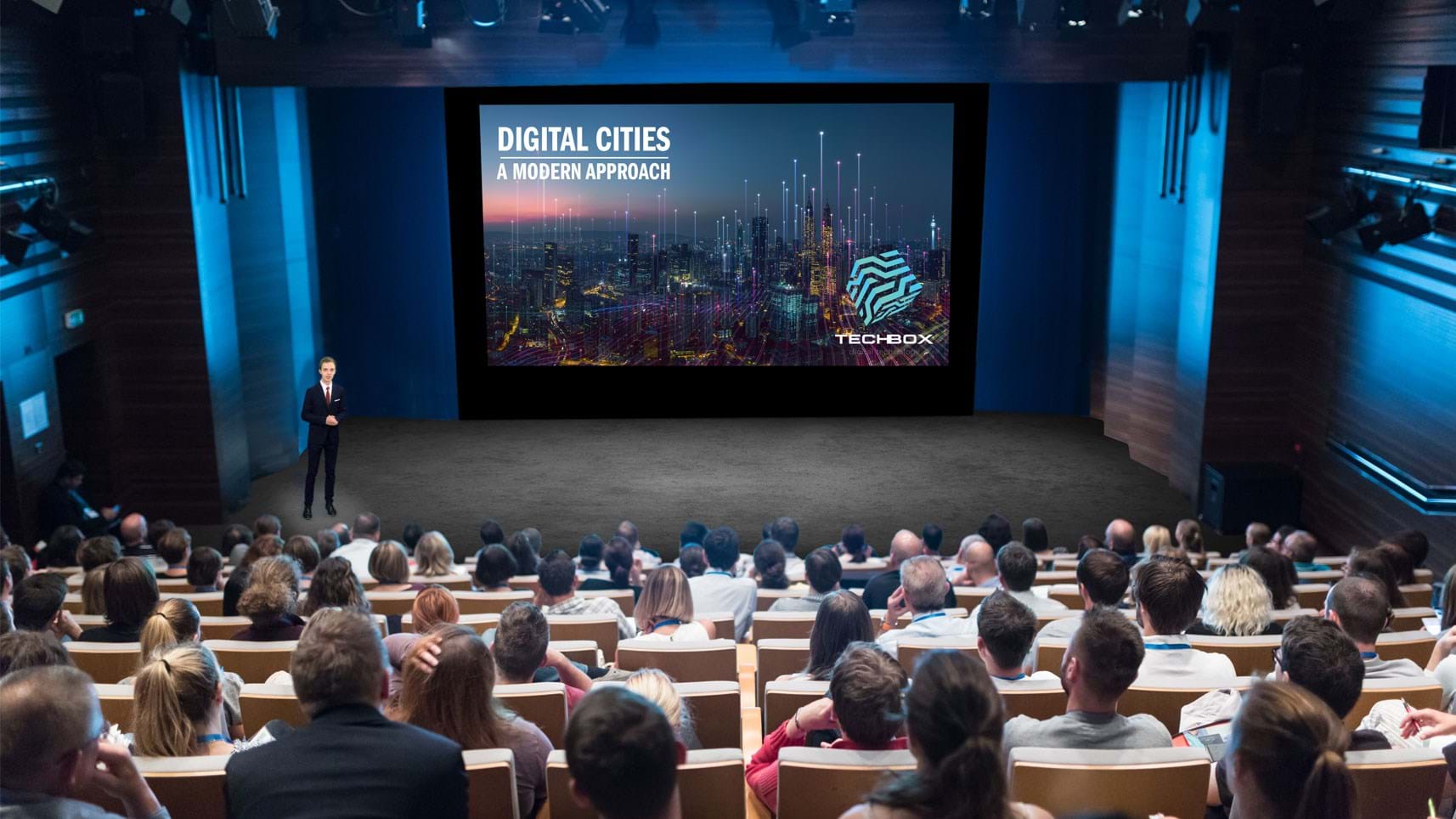

Leyard Venue Pro Series LED video walls are easily adaptable to various designs, such as hanging, stackable, wall-mounted, floor-mounted, attached to traditional and custom frames. With a wide range of configurations, this series is ideal for applications such as concerts, festivals, conferences, public meetings, trade shows or exhibitions.
Designed For Frequent Set-Up and Teardown

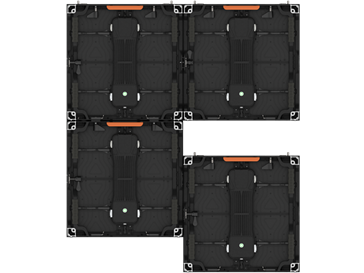

The Leyard Venue Pro Series video walls offer the highest level of display flexibility and ease of setup. To allow for single-person installation, the series features magnetic points that briefly hold the LED cabinet in place while an installer attaches the LED cabinet and completes the cabling. The cabinets also feature an integrated quick-lock system that allows the cabinets to be easily and efficiently connected together.
Compact & Reliable Components

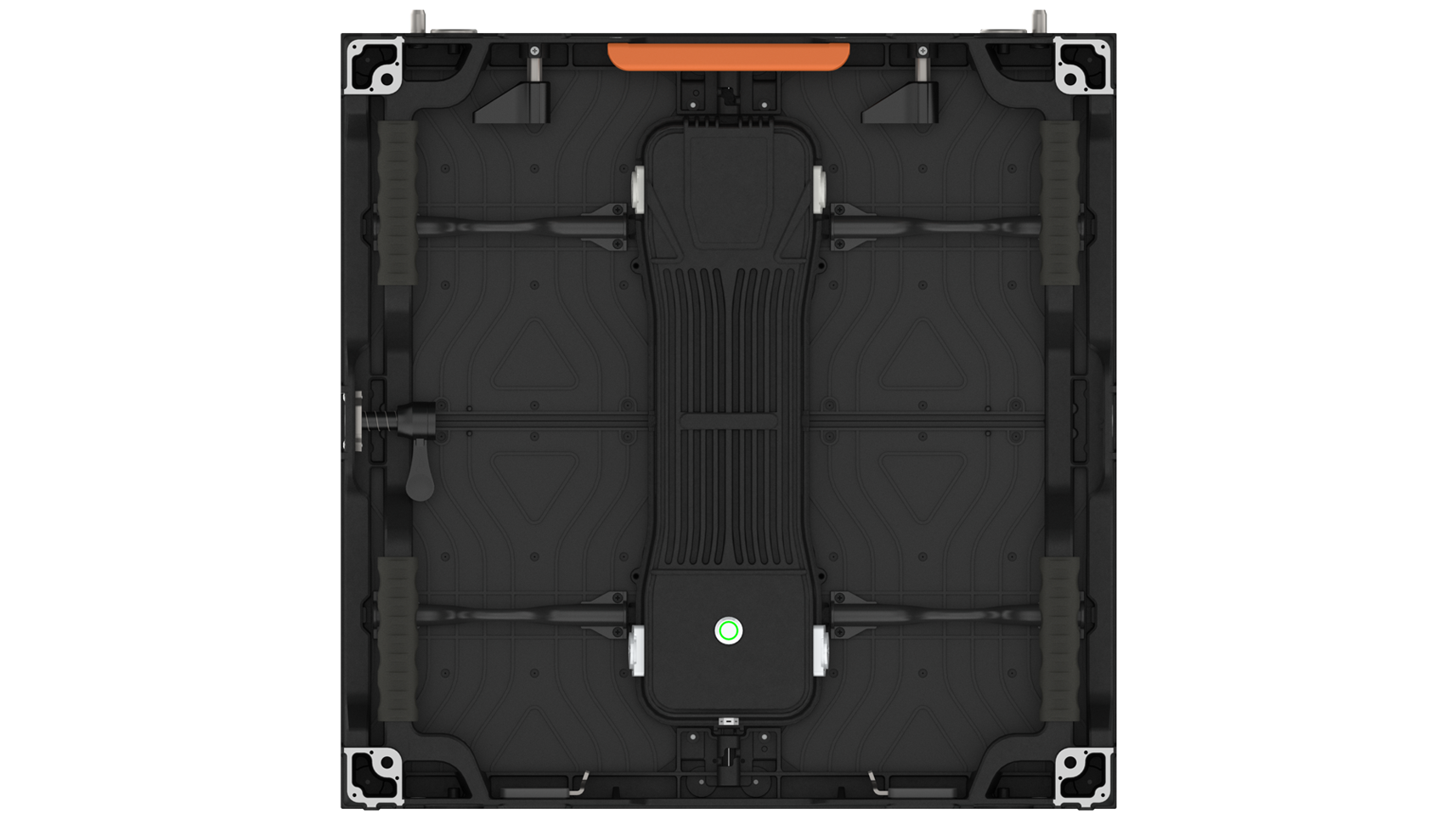

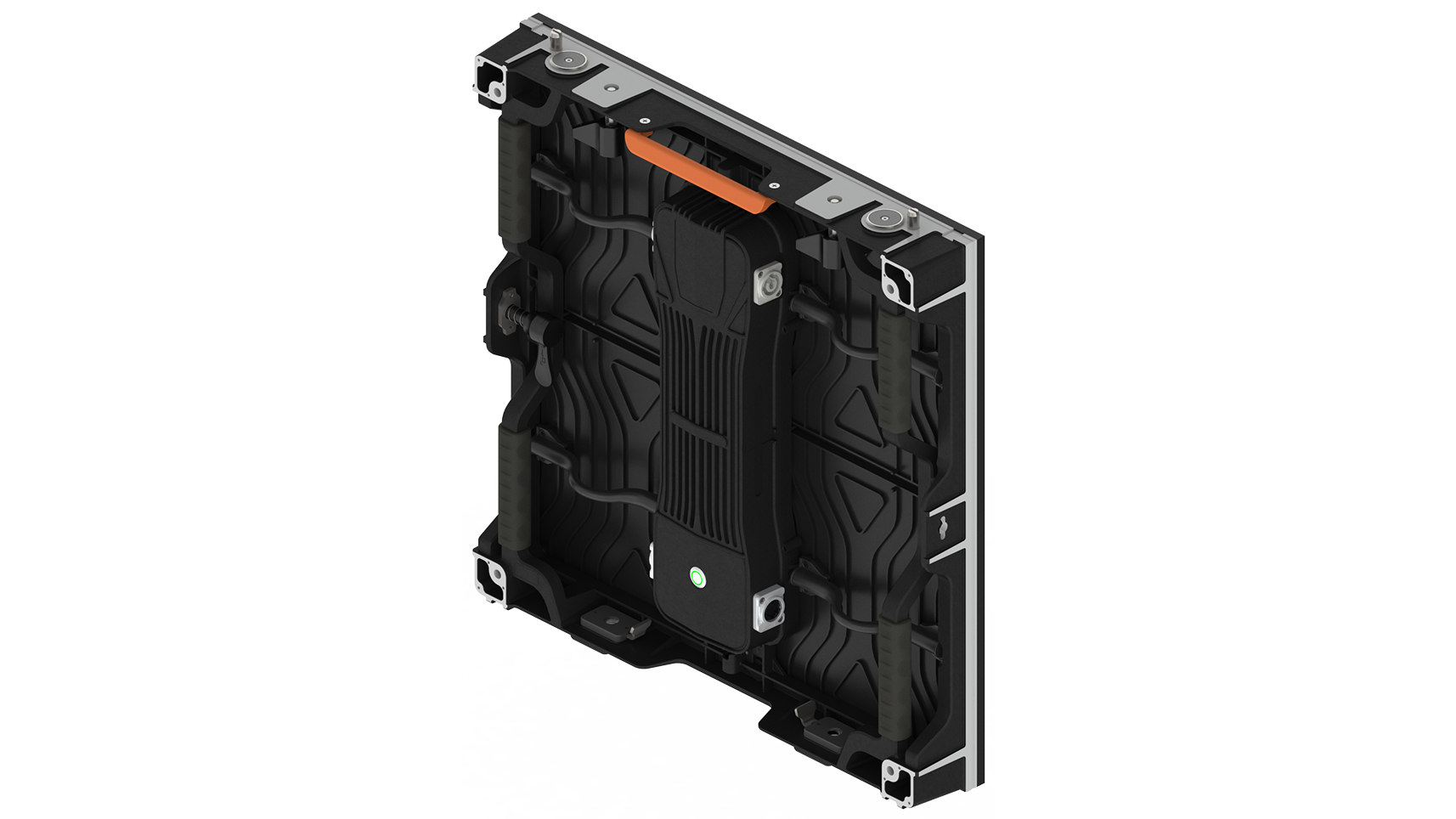

The Leyard Venue Pro Series uses power and signal cables that are compatible with industry standards, and features a quick and easy twist-lock latching system. All electronics are housed in a single compartment on the back of the cabinet. The electronics compartment is easily removable to allow quick access to and maintenance of all components.
Visually Stunning In Any Environment

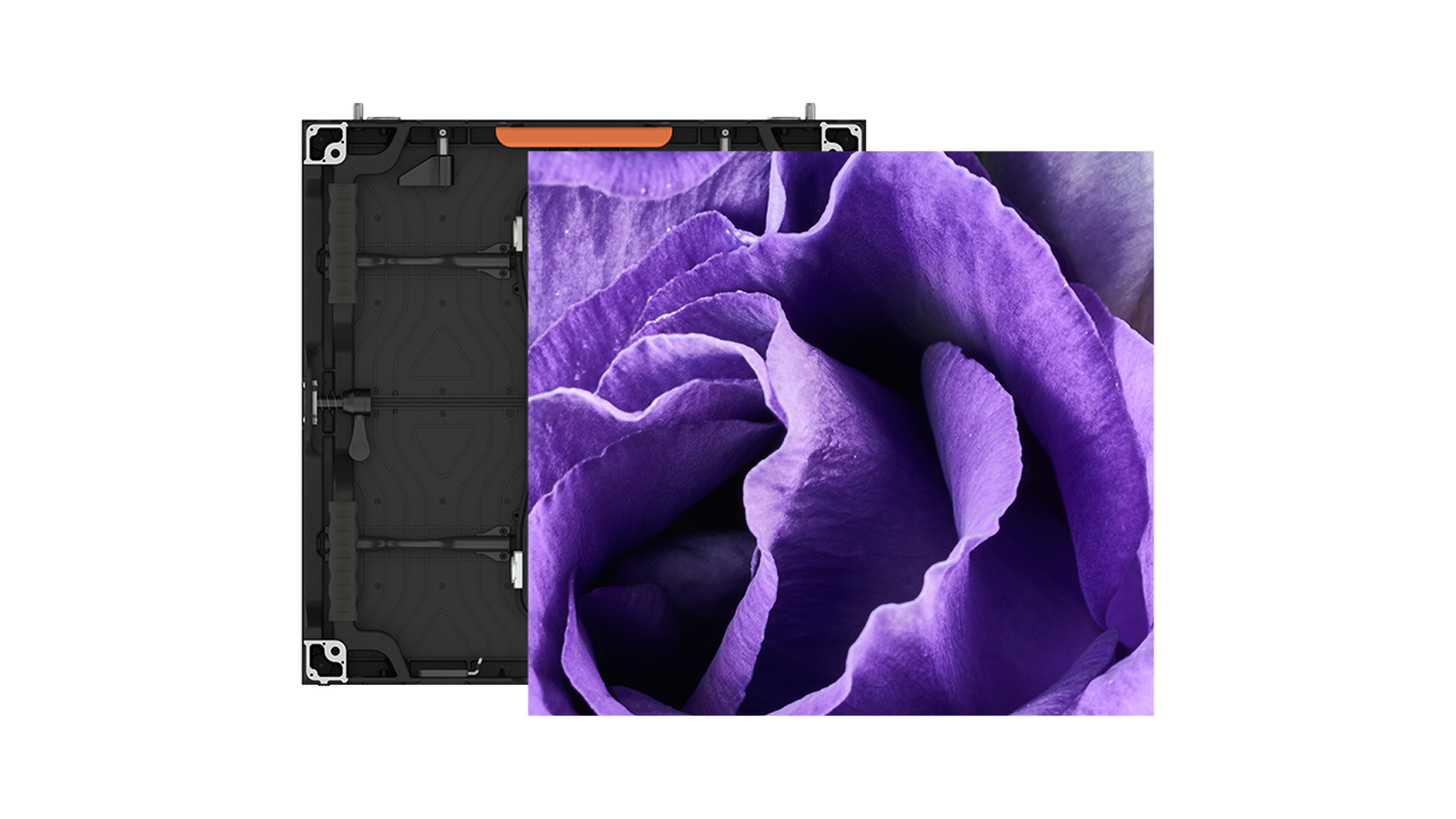

With high brightness, excellent contrast, and a wide color gamut, the Leyard Venue Pro Series delivers exceptional image quality to enhance dynamic applications. The series is suitable for high ambient light applications, with indoor models offering 1000 nits of brightness.
- 1.9, 2.5, 3.9, 4.8, 5.9mm pixel pitches
- Front or rear service & installation
- Single-person handling
- Hang, stack, or wall mount
Product Highlights
Easy Access

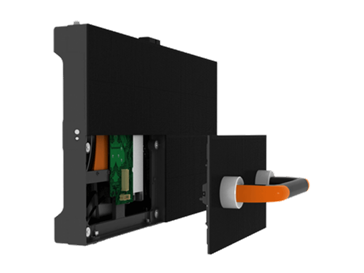

Front installation and service reduces the overall footprint of the video wall and the space required behind the wall for maintenance, making it easier to fit into more locations than other LED video wall solutions.
Solo Set-up
Magnetic points briefly hold the LED cabinet in place while a lone installer can secure the LED cabinet and complete the cabling. Handles, locking pins and an embedded fast-locking system also make it easy and efficient to connect and secure the cabinets together.
Compact Components
All electronics are housed in a single compartment at the rear of the cabinet. The electronics compartment is easily removable so that all components can be quickly accessed and serviced.
Specifications
| Model | VPI-1.9 | VPI-2.5 | VPI-3.9 | VPI-4.8 | VPI-5.9 |
|---|---|---|---|---|---|
| Pitch (mm) | 1.95 | 2.50 | 3.91 | 4.81 | 5.59 |
| Pixel Configuration | SMD | SMD | SMD | SMD | SMD |
| LED Drive Mode | Constant Current Drive | Constant Current Drive | Constant Current Drive | Constant Current Drive | Constant Current Drive |
| Cabinet Size (W x H x D) | 500 x 500 x 74 mm | 500 x 500 x 77 mm | 500 x 500 x 77 mm | 500 x 500 x 77 mm | 500 x 500 x 77 mm |
| Cabinet Diagonal | 707.10mm | 707.10mm | 707.10mm | 707.10mm | 707.10mm |
| Cabinet Resolution | 256x256 | 200x200 | 128x128 | 104x104 | 84x84 |
| Pixel Density (pixels/m²) | 262,144 | 160,000 | 65,536 | 43,264 | 28,224 |
| Modules/Display (W x H) | 2x2 | 2x2 | 2x2 | 2x2 | 2x2 |
| Module Resolution (WxH) | 128x128 | 100x100 | 64x64 | 52x52 | 42x42 |
| Module Size (W x H) | 250 x 250 mm | 250 x 250 mm | 250 x 250 mm | 250 x 250 mm | 250 x 250 mm |
| Power Consumption, Maximum (watts) | 160 | 160 | 160 | 160 | 160 |
| Line Voltage | 100~240v AC, 50/60Hz | 100~240v AC, 50/60Hz | 100~240v AC, 50/60Hz | 100~240v AC, 50/60Hz | 100~240v AC, 50/60Hz |
| Cabinet Weight (per display) | ≤ 8.00 kg / 17.64 lbs | ≤ 8.00 kg / 17.64 lbs | ≤ 8.00 kg / 17.64 lbs | ≤ 8.00 kg / 17.64 lbs | ≤ 8.00 kg / 17.64 lbs |
| Brightness Max, Calibration On (cd/sq) | 1000 | 1000 | 1000 | 1000 | 1000 |
| Frame Rate (Hz) | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| Colour Temperature (K) | 3000-10000 adjustable | 3000-10000 adjustable | 3000-10000 adjustable | 3000-10000 adjustable | 3000-10000 adjustable |
| Contrast Ratio | 6000:1 | 6000:1 | 6000:1 | 6000:1 | 6000:1 |
| Viewing Angle (50% of brightness) | >150° horizontal; >130° vertical | >150° horizontal; >130° vertical | >150° horizontal; >130° vertical | >150° horizontal; >130° vertical | >150° horizontal; >130° vertical |
| Front Access Install/Service | Yes | Yes | Yes | Yes | Yes |
| Refresh Rate (Hz) | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz |
| LED Lifetime (Half Brightness) | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
| Operating Temperature/Humidity (degrees C) | -20° to 40° C (10-80% RH, non-condensing) | -20° to 40° C (10-80% RH, non-condensing) | -20° to 40° C (10-80% RH, non-condensing) | -20° to 40° C (10-80% RH, non-condensing) | -20° to 40° C (10-80% RH, non-condensing) |
| Storage Temperature/Humidity (degrees C) | -40° to 60° C (10-85% RH, non-condensing) | -40° to 60° C (10-85% RH, non-condensing) | -40° to 60° C (10-85% RH, non-condensing) | -40° to 60° C (10-85% RH, non-condensing) | -40° to 60° C (10-85% RH, non-condensing) |
| IP Rating | IP30 | IP30 | IP30 | IP30 | IP30 |
