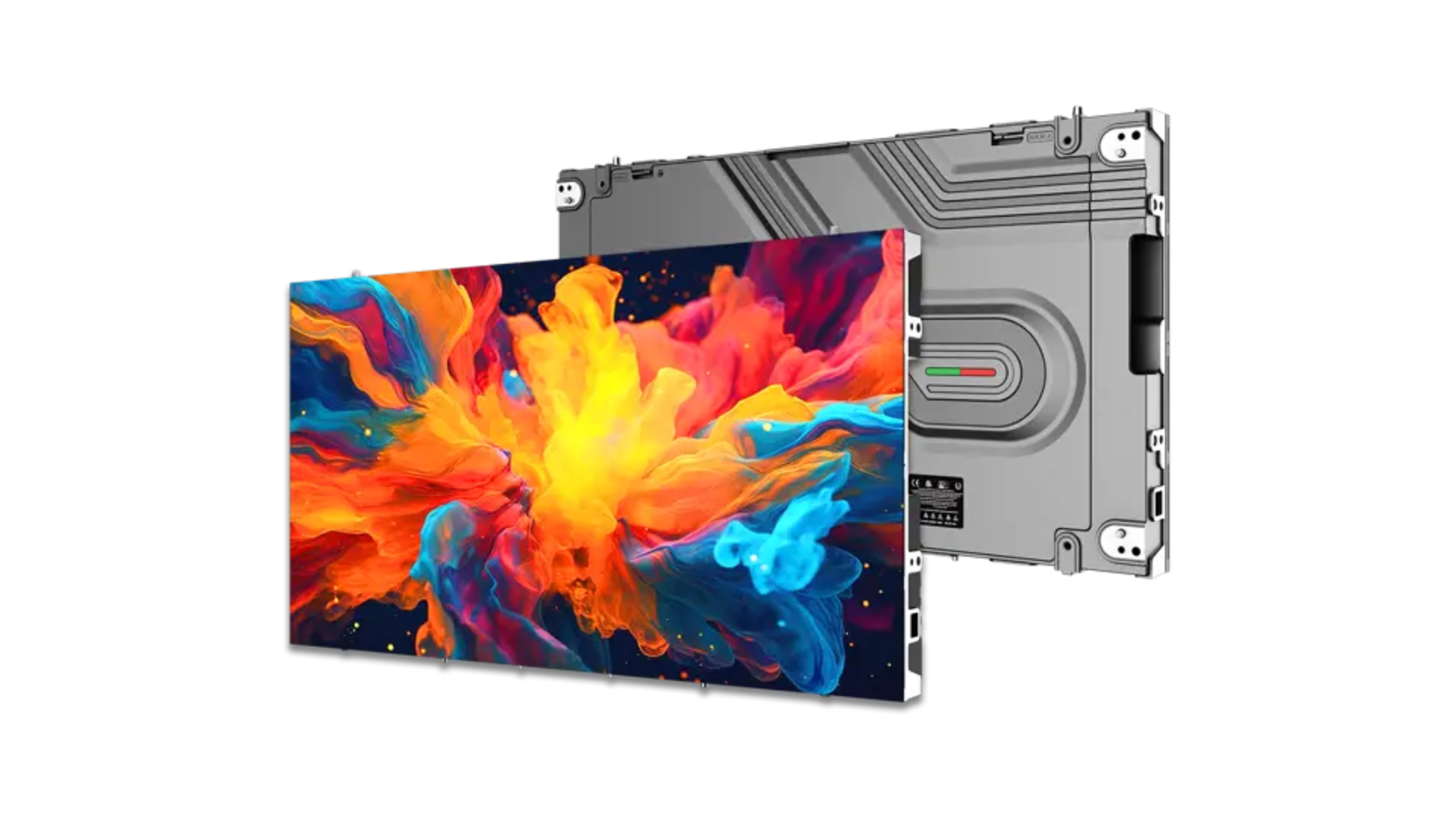

Leyard VDS Series
Indoor LED Video Wall Displays with Chip on Board Technology
Leyard Europe's Breakthrough Generation of LED Displays
The Leyard VDS Series is Leyard Europe's latest LED technology using Chip on Board (COB) technology. COB LED technology is becoming increasingly popular and Leyard Europe has developed the VDS Series to provide a state-of-the-art visualization solution. Using this technology allows the display to achieve extremely large viewing angles and high contrast ratios. All this while maintaining a very high power efficiency ratio. In addition, it comes packed with the latest 5G technology for easy installation and cabling.
The VDS Series offers 0.7, 0.9, 1.2, 1.5, and 1.8mm pixel pitch models, all of which are fully installable and serviceable from the front. With a 27" 16:9 cabinet, the VDS Series is perfect for Full HD, 4K and 8K setups. Combined with its protective layer and EMC Class B certification, it is ideal for those public spaces such as airports, train stations, museums and lobbies.
- 0.7, 0.9, 1.2, 1.5 & 1.8mm pixel pitch
- Latest COB technology
- More robust – 4H hardness
- Full front installation and service
- Efficient power consumption
- Low power standby
- 5G signal architecture
- EMC Class B
Product Highlights
Product Features
COB - Chip on Board Technology
The advanced COB technology ensures a low power consumption, a high contrast and a wide viewing angle of up to 170 degrees.
5G Architecture
VDS Series models offer 5x the bandwidth of competitive solutions, reducing the installation time as less cabling is needed.
Built-In Low-Power Standby Option
By sending a command through the processor, the cabinets can be placed in a low-power standby mode, reducing power consumption to as little as 3 W per m².
Advanced Hardness
The VDS Series features a protective COB layer that is designed to give it a hardness rating of 4H.

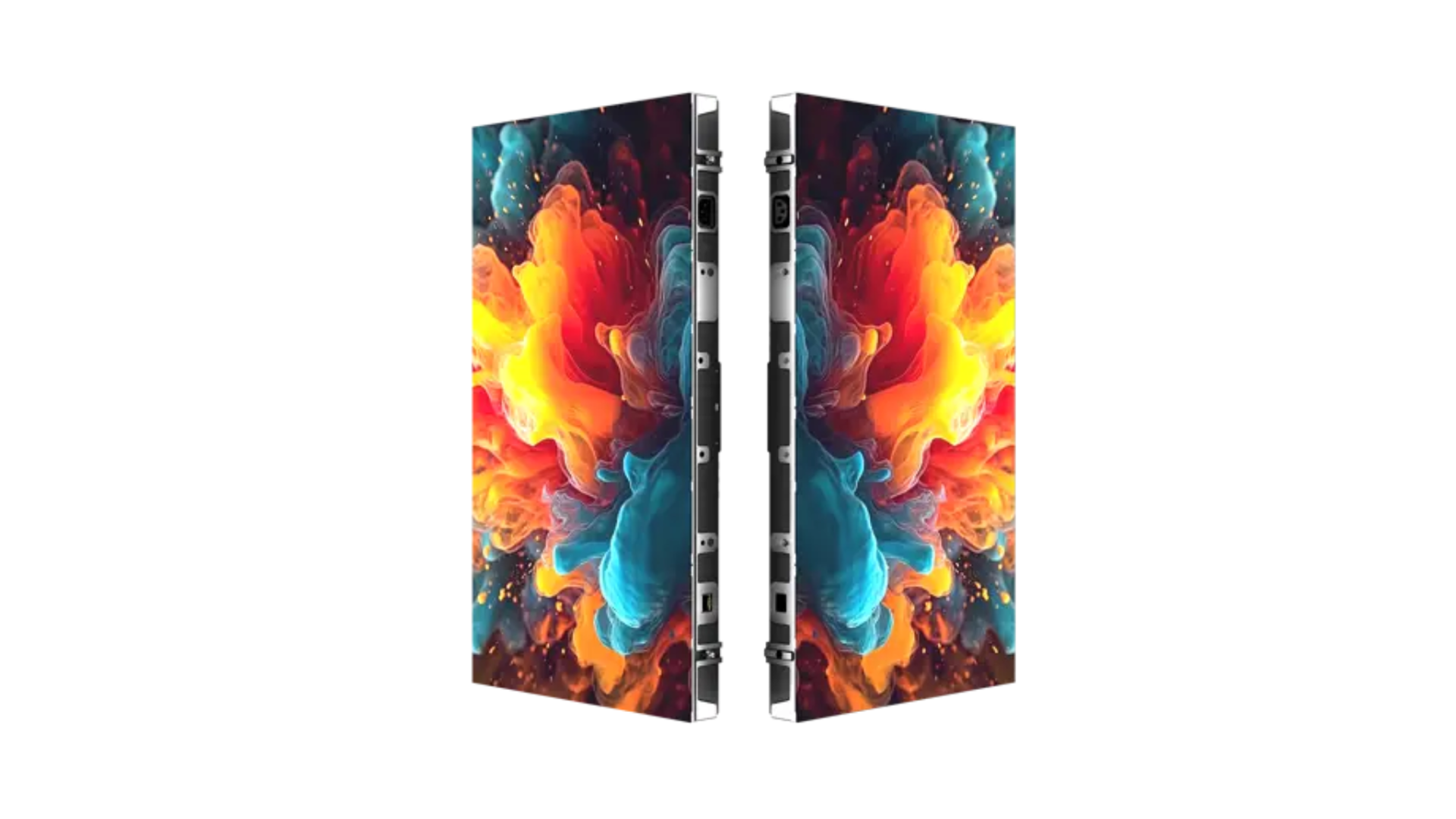

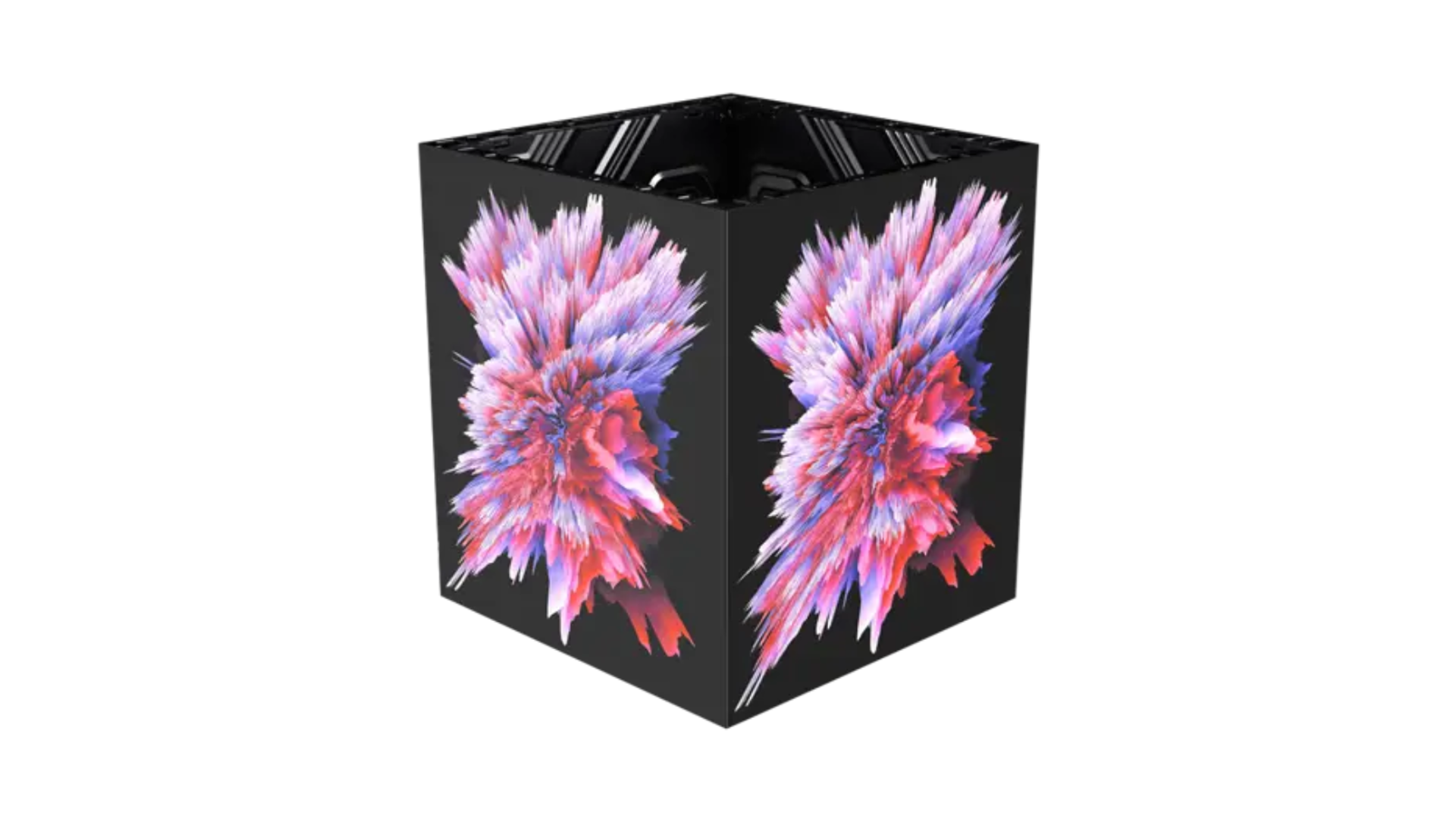

Corner Setup
For those situations where an angle is required, Leyard's VDS models offer 90° corner installation with only a 2mm gap.

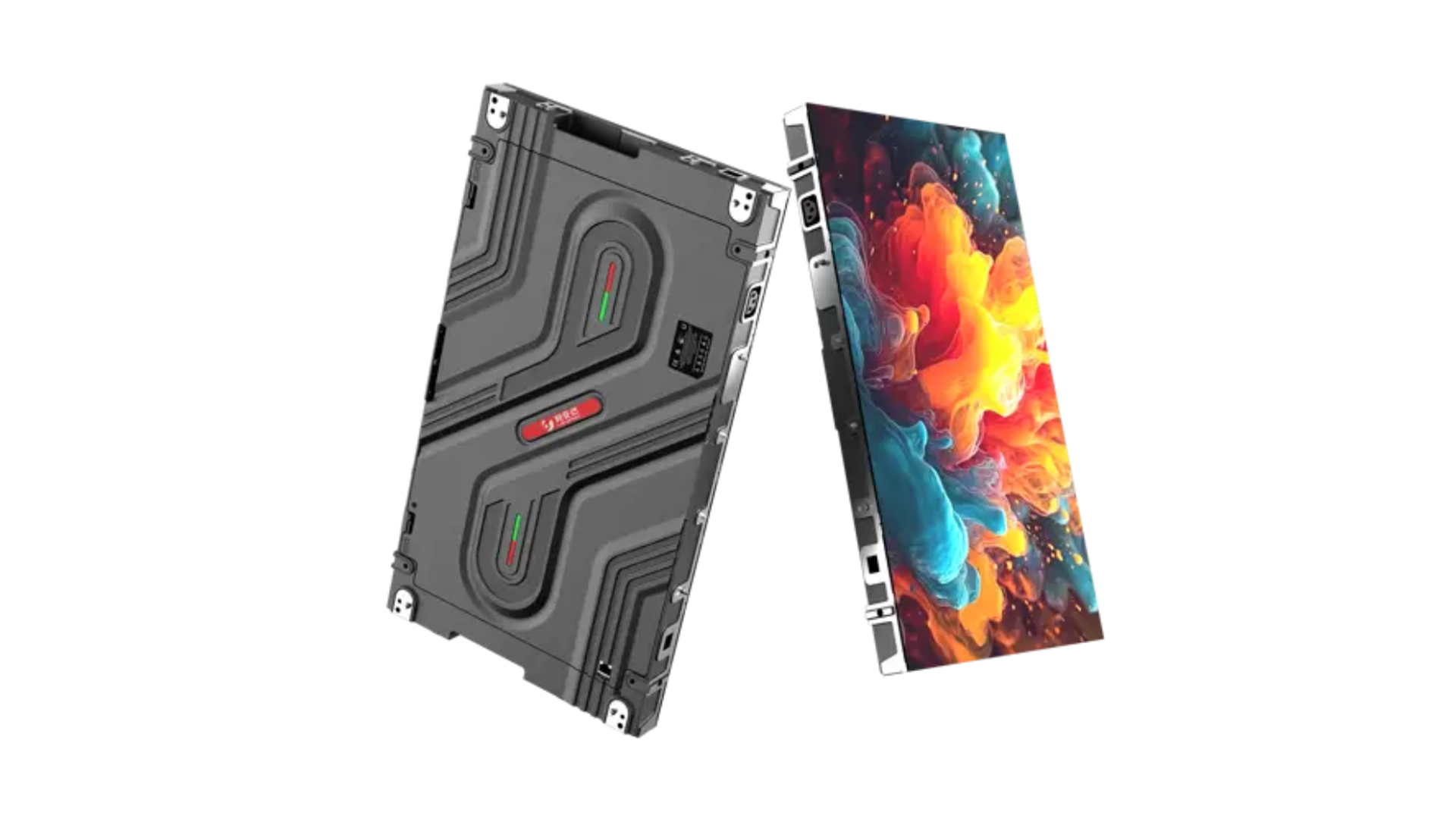

Pictures
Specifications
| VDS007 | VDS009 | VDS012 | VDS015 | VDS018 | |
|---|---|---|---|---|---|
| Pixel Configuration | Flip-Chip COB | Flip-Chip COB | Flip-Chip COB | Flip-Chip COB | Flip-Chip COB |
| Module Resolution (WxH) | 192x216 | 160x180 | 120x135 | 96x108 | 80x90 |
| Module Size | 150x168.75 | 150x168.75 | 150x168.75 | 150x168.75 | 150x168.75 |
| Module Composition (WxH) | 4x2 | 4x2 | 4x2 | 4x2 | 4x2 |
| Unit Area (m²) | 0.2025 | 0.2025 | 0.2025 | 0.2025 | 0.2025 |
| Surface Flatness (mm) | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 |
| Brightness Calibration | Yes | Yes | Yes | Yes | Yes |
| Color Calibration | Yes | Yes | Yes | Yes | Yes |
| Deviation of LED Luminance Center | <3% | <3% | <3% | <3% | <3% |
| Chromaticity Uniformity | ±0.003Cx,Cy within | ±0.003Cx,Cy within | ±0.003Cx,Cy within | ±0.003Cx,Cy within | ±0.003Cx,Cy within |
| Drive Mode | Common cathode constant current driver | Common cathode constant current driver | Common cathode constant current driver | Common cathode constant current driver | Common cathode constant current driver |
| IP Level | IP54 / 4H | IP54 / 4H | IP54 / 4H | IP54 / 4H | IP54 / 4H |
| Operation Temperature (°C) | -10 ~ 40 | -10 ~ 40 | -10 ~ 40 | -10 ~ 40 | -10 ~ 40 |
| Storage Temperature (°C) | -20 ~ 60 | -20 ~ 60 | -20 ~ 60 | -20 ~ 60 | -20 ~ 60 |
| Operation Humidity (RH) | 10~90% no condensation | 10~90% no condensation | 10~90% no condensation | 10~90% no condensation | 10~90% no condensation |
| Storage Humidity (RH) | 10~95% no condensation | 10~95% no condensation | 10~95% no condensation | 10~95% no condensation | 10~95% no condensation |
| Pixel Pitch | 0.78 | 0.935 | 1.25 | 1.56 | 1.875 |
| Pixel Density (pixel/m²) | 1638400 | 1137777 | 640000 | 409600 | 284444 |
| Brightness Uniformity | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% |
| Lifetime (hrs) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Frame Rate (Hz) | 50&60 | 50&60 | 50&60 | 50&60 | 50&60 |
| Power Supply | AC100~240V (50/60Hz) | AC100~240V (50/60Hz) | AC100~240V (50/60Hz) | AC100~240V (50/60Hz) | AC100~240V (50/60Hz) |
| Contrast Ratio | 20000:1 | 20000:1 | 20000:1 | 20000:1 | 20000:1 |
| Cabinet Resolution (WxH) | 768x432 | 640x360 | 480x270 | 384x216 | 320x180 |
| Cabinet Size (WxHxD) | 600x337.5x43.5 | 600x337.5x43.5 | 600x337.5x43.5 | 600x337.5x43.5 | 600x337.5x43.5 |
| Cabinet Weight per m² (kg) | 25 | 25 | 25 | 25 | 25 |
| Brightness, max. (cd/m²) | 600 | 600 | 600 | 600 | 600 |
| Color Temperature (K) | 3000 - 10000 Adjustable | 3000 - 10000 Adjustable | 3000 - 10000 Adjustable | 3000 - 10000 Adjustable | 3000 - 10000 Adjustable |
| Viewing Angle, Horizontal (°) | 170 | 170 | 170 | 170 | 170 |
| Viewing Angle, Vertical (°) | 170 | 170 | 170 | 170 | 170 |
| Power Consumption, max. (W/m²) | 425 | 375 | 325 | 325 | 300 |
| Power Consumption, typ. (W/m²) | 200 | 175 | 160 | 160 | 150 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 |
| Download Specs | Download Specs | Download Specs | Download Specs | Download Specs |
