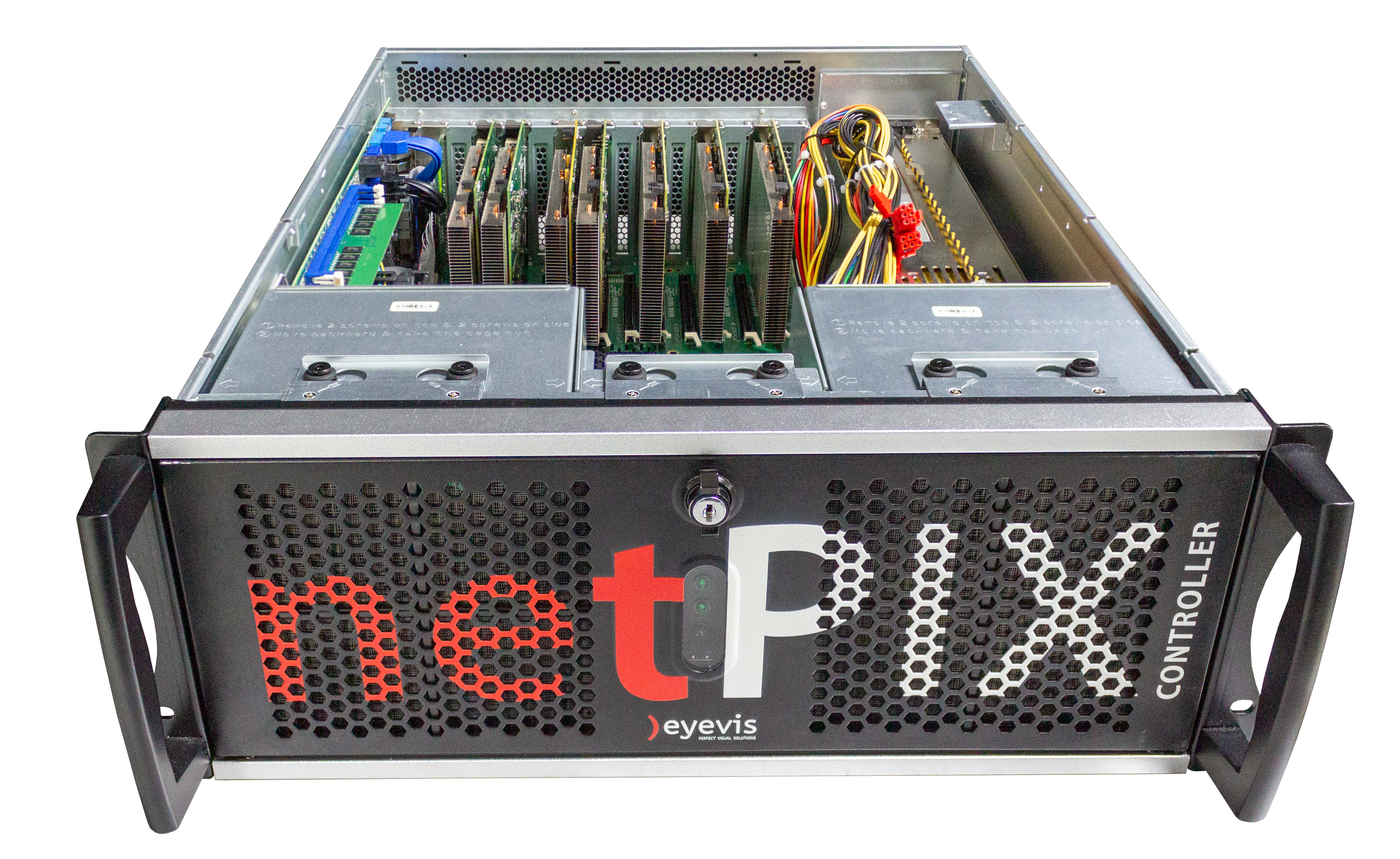

netPIX-core is a network based graphic controller for the management of video wall systems, single displays or projectors. Through its MultiScreen-ability any display surfaces can be realized. The controller creates a big joined desktop for network-applications, video and graphic sources. At the heart of the netPIX-core works the powerful SBC in combination with latest generation backplanes with Switch Fabric. The new netPIX-core controllers offer an ultra-high performance bus, cost-effective INTEL CPUs, 64Bit technology and high bandwidth through a Switch Fabric bus. These latest technologies guarantee the revolutionary and powerful performance of the next generation of the netPIX family in any control room application.

The netPIX-core controllers provide multiple analog and digital video and graphic connectivity with input cards. Thanks to latest Switch Fabric architecture, video and graphic sources can be displayed simultaneously on the display wall in full frame rates. All analog and digital Video-/RGB-/DVI- and IP Streaming data is transmitted with up to 192 GB/s without any dependencies on the system.

  • Highly flexible video wall controller solution
  • Diverse types of input connections, large numbers of outputs
  • Simple system architecture
  • Expandable for future system upgrades
  • High performance

Features

Advanced System Architecture

The netPIX controller series relies on latest SBC (Single Board Computer) technology. This technology uses Intel® technology based on one Intel® Core® i7 processor, which guarantees a high-quality presentation of applications.

  • High-end components for highest availability
  • 32GB DDR4 ECC RAM
  • DUAL Gigabit Ethernet
  • Multimedia bracket (Line Out, Line In, Mic, USB)

Reliable System Availability

  • Redundant power supply units, hot swappable
  • Redundant SATA Solid State Disk with RAID1 or RAID5
  • eyevis Factory Image Recovery (EYE-FIR) is supplied on a USB stick to restore the controller within minutes to delivery status or to a self-generated image.
  • The controllers from the netPIX series are built in compliance with eyevis ISO 9001 certificated production processes to meet the specific requirements of each customer.
  • The netPIX-core is the best controller for control rooms with high availability.

Desktop Management & Operating System

  • Thanks to its MultiScreen-ability, any data and application can be displayed simultaneously; they can also be freely positioned and scaled on the entire video wall. The operator has a big desktop with a very high resolution at his disposal, which will be multiplied by the size of the wall.
  • Supports Windows 10 64-Bit IoT Enterprise LTSB 2016
  • Up to 32GB RAM inside the systems for memory intensive applications.
  • Huge Windows desktops with up to 16000×16000 pixels with Windows 10, depending on the size of the system
  • Windows-based applications can be displayed simultaneously with any other input signals like video, IP-video and RGB/DVI/HDMI/DisplayPort.

Reliable System Availability

  • Redundant power supply units, hot swappable
  • Redundant SATA Solid State Disk with RAID1 or RAID5
  • eyevis Factory Image Recovery (EYE-FIR) is supplied on a USB stick to restore the controller within minutes to delivery status or to a self-generated image.
  • The controllers from the netPIX series are built in compliance with eyevis ISO 9001 certificated production processes to meet the specific requirements of each customer.
  • The netPIX-core is the best controller for control rooms with high availability.

Specifications

Input Signal Processing

The netPIX-core controllers can be equipped with various input cards for video, RGB/DVI/HDMI/DP and IP signals. All input signal windows can be moved, scaled and placed freely on the display wall.

  • The input cards provide state-of-the-art video processing resulting in superb quality
  • Huge number of cards per system possible
  • Easy to upgrade for future system expansion

Analog Video Input Card

  • Up to 128 video signals in one system
  • Up to 32 video windows can be displayed with every display output
  • Composite BNC or S-Video (Y/C)

IP Decoder Input Card

  • Dual 1000 Base-T Ethernet Ports
  • Simultaneous decoding of up 50 channels in D1 quality
  • Simultaneous decoding of up 12 channels in Full HD quality (30fps)
  • Simultaneous decoding of up 6 channels in Full HD quality (60fps)
  • Simultaneous decoding of up 3 channels in UHD/4K resolution (30fps)
  • Supports MPEG2, MPEG4, H.264, MJPEG

RGB / DVI Input Card

  • Display of the source in freely moveable, scalable and placeable windows on the display wall
  • Up to 40 RGB/DVI input sources
  • Input Signals:
    - Up to 3840×2160@30Hz with our DVI-/HDMI input cards
    - DVI Single Link up to 1920×1200@60Hz
    - Analog up to 2048×1536@60Hz

HDMI / DisplayPort Inputs

  • Display of the source in freely moveable, scalable and placeable windows on the display wall
  • Up to 40 HDMI / DisplayPort inputs
  • Input Signals:
    - Up to 4096× 2160@60Hz with our DisplayPort input card
    - Up to 4096× 2160@60Hz with our HDMI 2.0 input card

Output Graphics Processing

The new GPU with 128MB GDDR5 per output channel achieves a never seen graphic performance.

  • Digital outputs up to 3840×2160 pixels and HD format
  • Configurations up to 48 output channels (max. number of outputs depends on product version)
  • Multiple resolution modes for different output resolutions at the same time, for rectangle or none-rectangle display configurations*
  • Live preview support for each source connected with the eyeUNIFY wall management software
  • Under-lapping mode for narrow bezel displays*
  • Over-lapping mode for edge overlapping projections*
  • Pivot mode for landscape and portrait display*
  • Supports custom resolutions, e.g. for Narrow Pixel Pitch LED configurations

    *) non-standard modes, available on request

eyevis eyeUNIFY Video Wall Management

For an easy management of large screen displays, we recommend to combine our eyeUNIFY wall management software with the netPIX controller. With this software, especially developed for large screen displays, the user has nearly unlimited possibilities for the management and operation of his display wall.
