Planar Komodo Series
Indoor LED Video Wall
Premium COB MicroLED – Designed for Visual Excellence

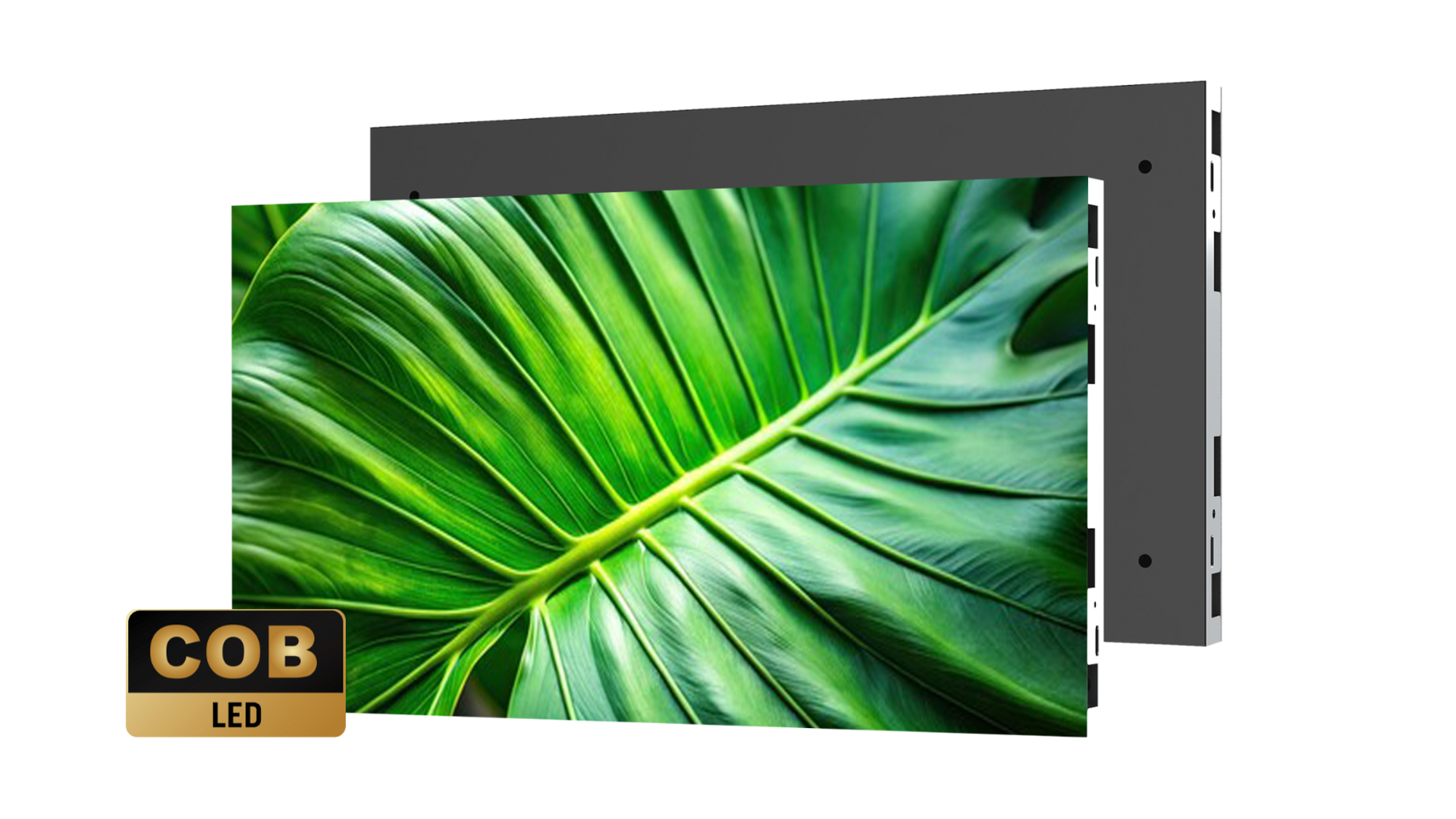

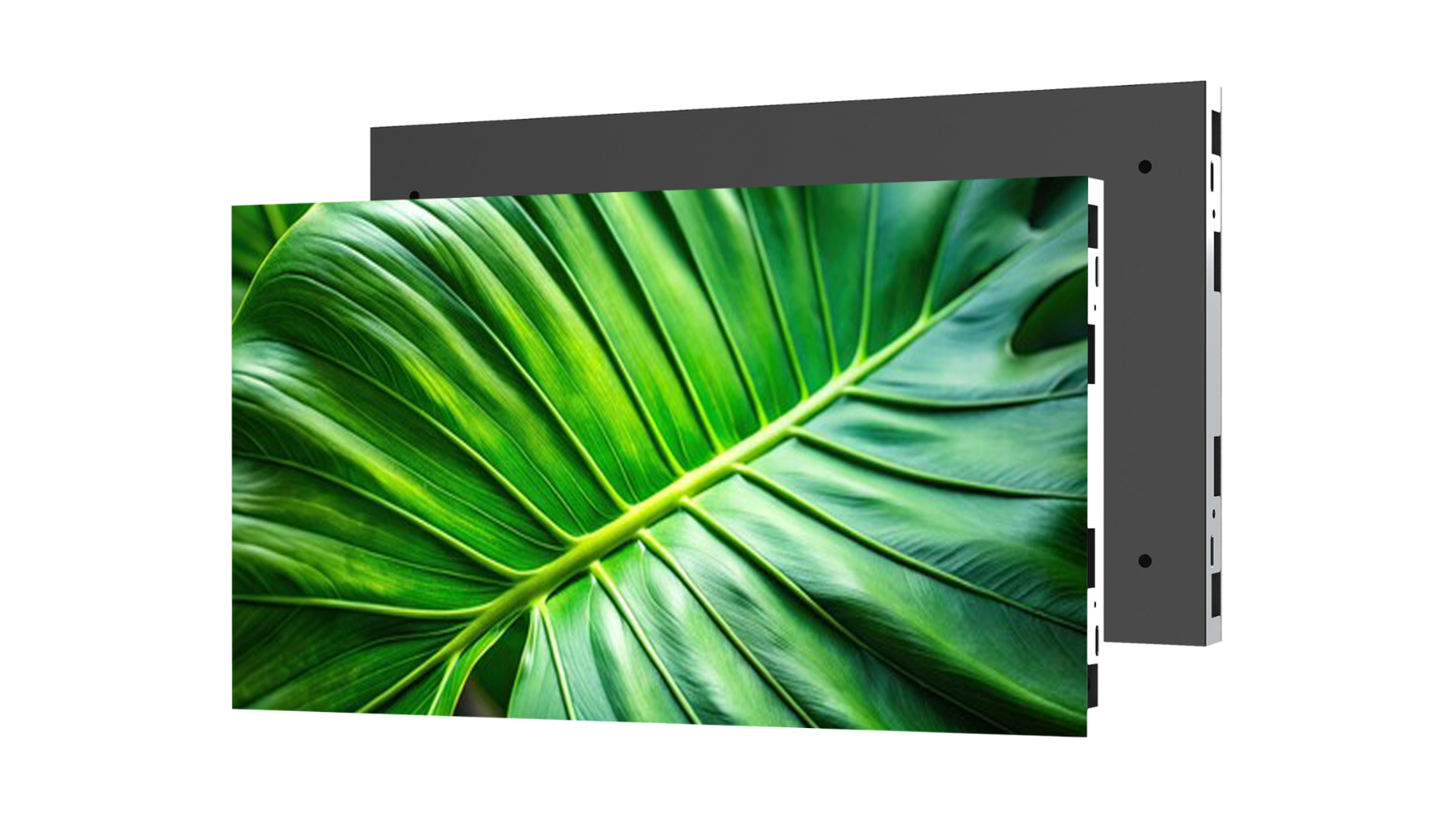

The Planar® Komodo Series is a premium line of fine-pitch LED video walls built with Chip-on-Board (COB) MicroLED technology that delivers durability, energy efficiency, superior color uniformity, and wide viewing angles.
It is optimized for industry-standard resolutions and supports 16:9 and 21:9 configurations. A high-bandwidth, future-ready system architecture ensures uncompromising reliability, long-term compatibility, and exceptional image quality for the most visually discerning indoor applications.
- 0.7, 0.9, and 1.2 mm pixel pitches
- Designed to deliver maximum visual performance
- Premium COB LED technology
- Optimized for 16:9 and 21:9 configurations
- High-bandwidth system architecture
Highlights

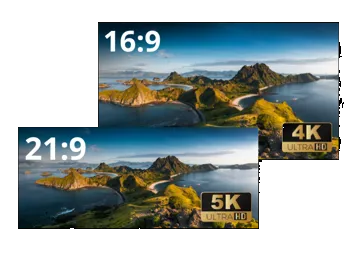

Designed for 16:9 and 21:9
The Komodo Series is designed to support today’s most popular resolutions. Optimized for native 16:9 and 21:9 aspect ratios, the series delivers seamless video walls for standard HD, 4K, 8K, and ultra-wide 5K applications.

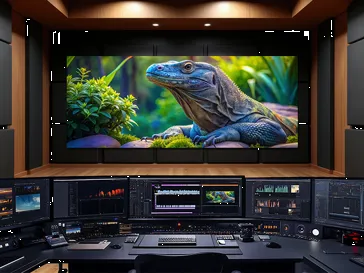

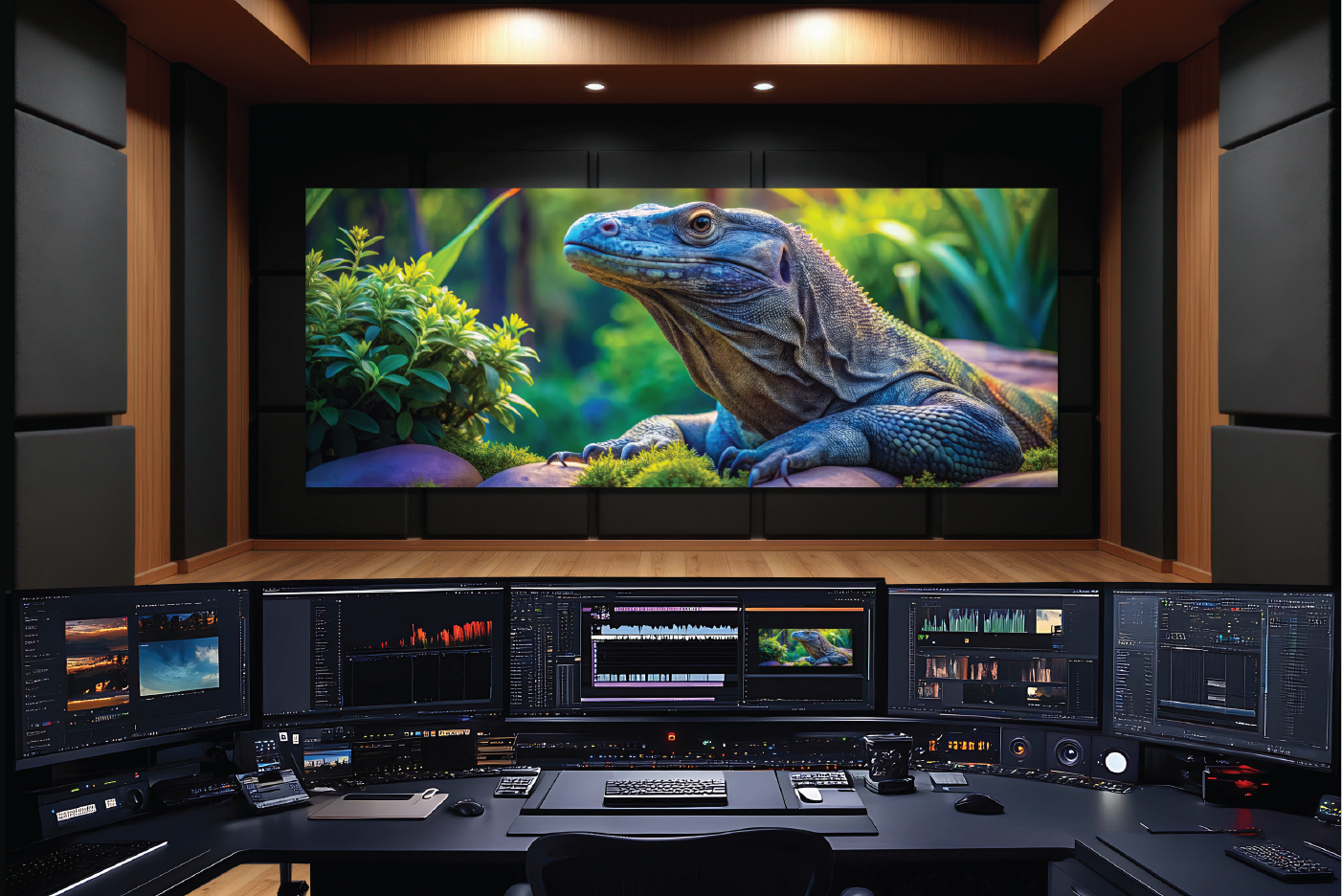

Unmatched Video Performance
This LED video wall delivers premium visual performance with an accurate and wide color gamut. Designed for high-end applications, it produces vivid, lifelike images with consistent colors and precise detail, ensuring that every display meets professional standards for color accuracy.
Processing Behind the Pixels

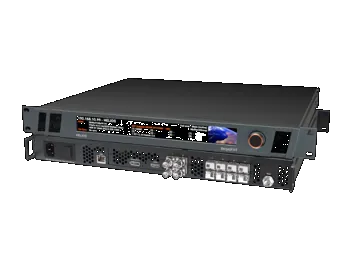

The Megapixel HELIOS® offers advanced LED processing in a compact, powerful 1U footprint. With flexible inputs that support today's standards and a future-ready, easily upgradeable design, it ensures lasting compatibility, performance, and reliability.

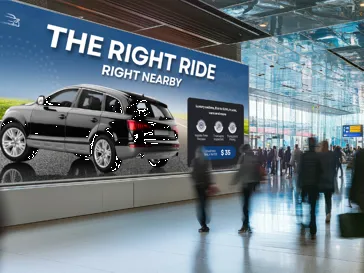

Durability That Delivers
Built tough with COB LED technology, this solution minimizes failure points and stress on components. The result is exceptional durability, water resistance, and long-lasting reliability, making it ideal for challenging indoor environments.
Energy-Efficient Design
COB LED technology is energy efficient, reducing power consumption while enhancing visual quality. Its design maximizes light output and minimizes energy loss, providing bright, consistent lighting at a lower cost to operate. Efficient heat dissipation and a longer lifespan ensure stable, long-term performance.

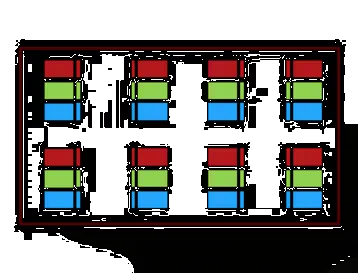

Advanced Manufacturing for Premium COB
Our advanced manufacturing process goes beyond traditional LED die sorting by strategically positioning LED dies in alternating positions. This innovation achieves richer color uniformity and broader viewing angles, setting a new premium standard for COB LED technology.
Added Assurance
This LED video wall display solution is protected by a 3-year standard limited warranty, which offers additional peace of mind and investment protection.
Specifications
| Komodo 0.7 | Komodo 0.9 | Komodo 1.2 | |
|---|---|---|---|
| Operating Altitude | 0m to 3000m (0ft to 10,000ft) within a 0°C to 25°C range, from 25°C to max it is acceptable to de-rate operating temperature altitudes above 0m (0ft). | 0m to 3000m (0ft to 10,000ft) within a 0°C to 25°C range, from 25°C to max it is acceptable to de-rate operating temperature altitudes above 0m (0ft). | 0m to 3000m (0ft to 10,000ft) within a 0°C to 25°C range, from 25°C to max it is acceptable to de-rate operating temperature altitudes above 0m (0ft). |
| LED Type | COB (Chip-on-Board) | COB (Chip-on-Board) | COB (Chip-on-Board) |
| Pixel Pitch (mm) | 0.75mm | 0.9375mm | 1.25mm |
| Cabinet Resolution (WxH) | 640 x 360 | 640 x 360 | 480 x 270 |
| Brightness, max. (cd/m²) | 1000 nits | 1000 nits | 1000 nits |
| Brightness Uniformity | ≥97% | ≥97% | ≥97% |
| Color Uniformity | ≥95% | ≥95% | ≥95% |
| Color Gamut | ≥95% DCI-P3 | ≥95% DCI-P3 | ≥95% DCI-P3 |
| HDR (High Dynamic Range) | Yes | Yes | Yes |
| Refresh Rate (Hz) | 3840 - 7680Hz | 3840 - 7680Hz | 3840 - 7680Hz |
| Color Temperature (K) | 3000-10000K | 3000-10000K | 3000-10000K |
| Viewing Angle, Horizontal (°) | >170° | >170° | >170° |
| Viewing Angle, Vertical (°) | >150° | >150° | >150° |
| Cabinet Diagonal | 551mm | 21.68" | 688.61mm | 27.1" | 688.61mm | 27.1" |
| Cabinet Size (WxHxD) | 480mm x 270mm x 26.0mm | 18.9" x 10.63" x 1.02" | 600mm x 337.5mm x 69.7mm | 23.62" x 13.28" x 2.74" | 600mm x 337.5mm x 69.7mm | 23.62" x 13.28" x 2.74" |
| Cabinet Area (m²) | 0.1296m² | 1.3949ft² | 0.2025m² | 2.1796ft² | 0.2025m² | 2.1796ft² |
| Module Composition (WxH) | 4 x 2 | 2 x 2 | 2 x 2 |
| Cabinet Weight (kg) | 3.4kg | 7.5lbs | 4.8 kg |10.58 lbs | 4.8 kg |10.58 lbs |
| Service Access | Front Access | Front Access | Front Access |
| Recommended Usage | 24 x 7 hrs/day | 24 x 7 hrs/day | 24 x 7 hrs/day |
| Lifetime (hrs) | 100000 hours | 100000 hours | 100000 hours |
| Video Input | DisplayPort 1.4 HBR3, HDMI 2.0b with HDCP 2.2; Optional: USB-C | 10Gb SDI SMPTE ST2110 | 100Gb QSFP SMPTE ST 2110 | DisplayPort 1.4 HBR3, HDMI 2.0b with HDCP 2.2; Optional: USB-C | 10Gb SDI SMPTE ST2110 | 100Gb QSFP SMPTE ST 2110 | DisplayPort 1.4 HBR3, HDMI 2.0b with HDCP 2.2; Optional: USB-C | 10Gb SDI SMPTE ST2110 | 100Gb QSFP SMPTE ST 2110 |
| ADA Compliant | Yes | Yes | Yes |
| Line Voltage | 100-240V AC, 50/60Hz | 100-240V AC, 50/60Hz | 100-240V AC, 50/60Hz |
| Power Consumption, max. (W/Cabinet) | 65 W | 85 W | 85 W |
| Power Consumption, max. (W/m²) | 502 W | 420 W | 450 W |
| Operation Temperature (°C) | 0°C to 40°C | 32° to 104° F; Up to Maximum operating temperature | 0°C to 40°C | 32° to 104° F; Up to Maximum operating temperature | 0°C to 40°C | 32° to 104° F; Up to Maximum operating temperature |
| Operation Humidity (RH) | 10-80% relative humidity, non-condensing | 10-80% relative humidity, non-condensing | 10-80% relative humidity, non-condensing |
| Storage Temperature (°C) | -10° to 60° C | 14° to 140° F | -10° to 60° C | 14° to 140° F | -10° to 60° C | 14° to 140° F |
| Storage Humidity (RH) | 10-85% relative humidity, non-condensing | 10-85% relative humidity, non-condensing | 10-85% relative humidity, non-condensing |
| Download Specs | Download Specs | Download Specs |
